Suntron Plastics

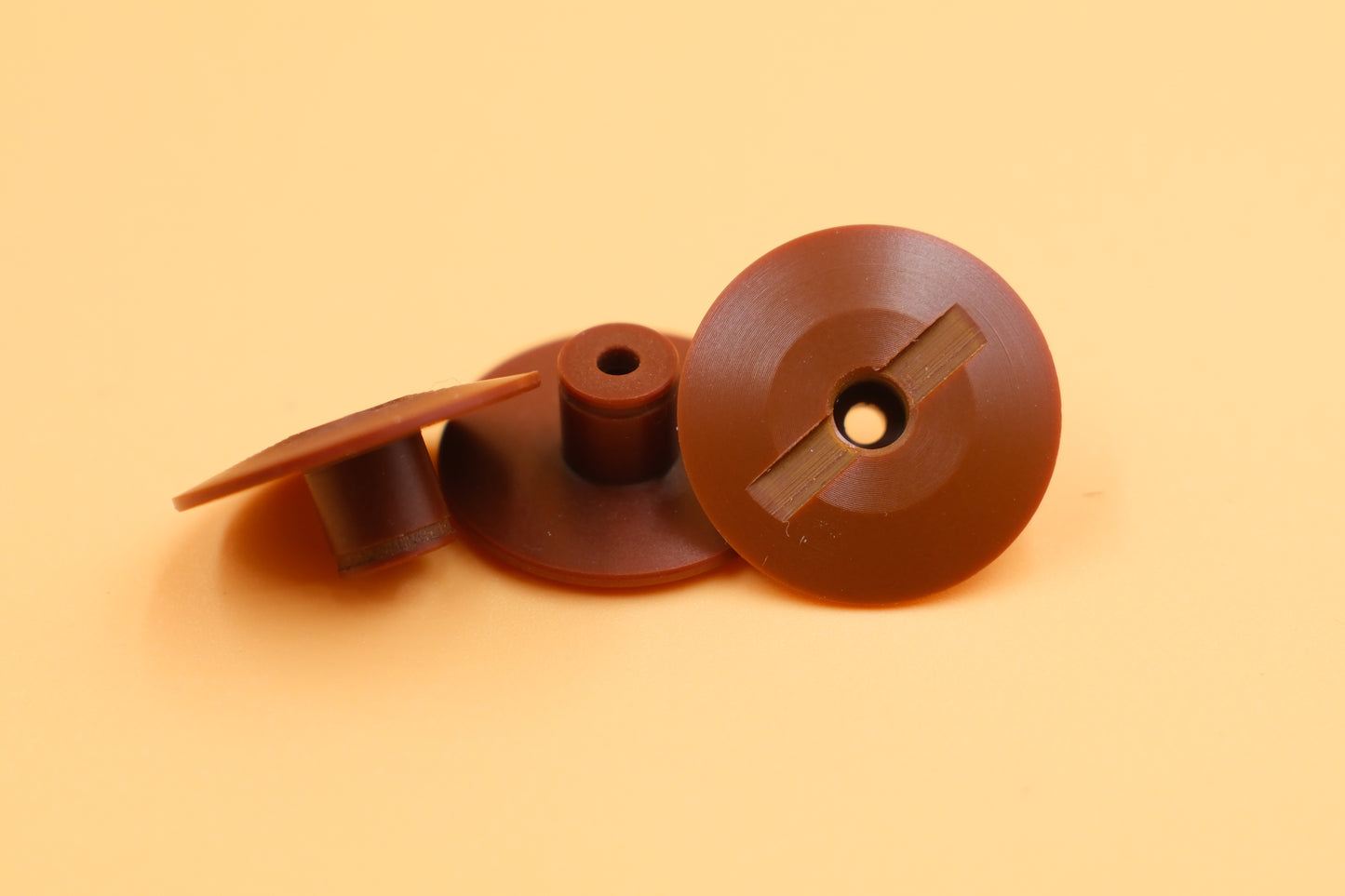

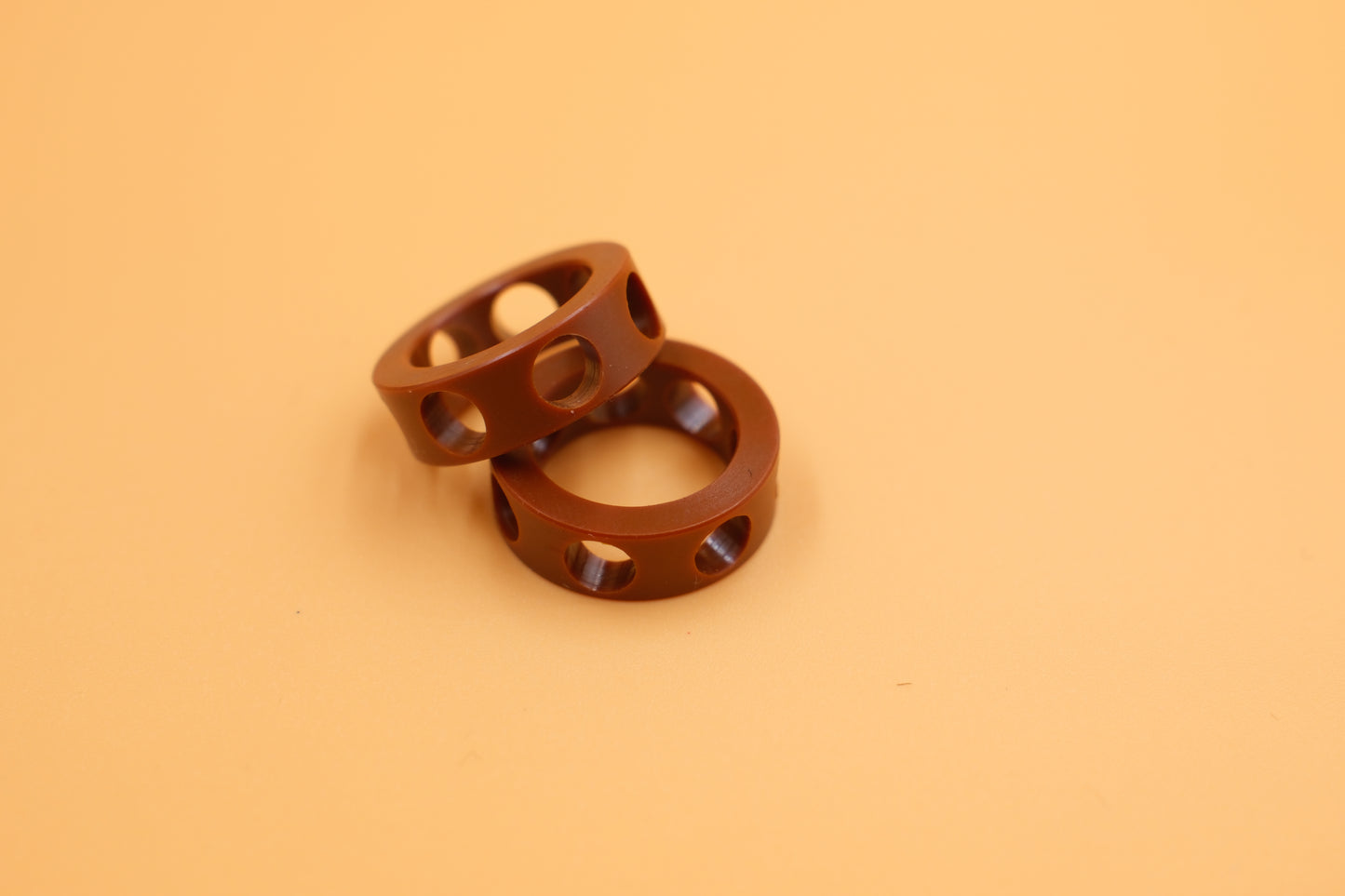

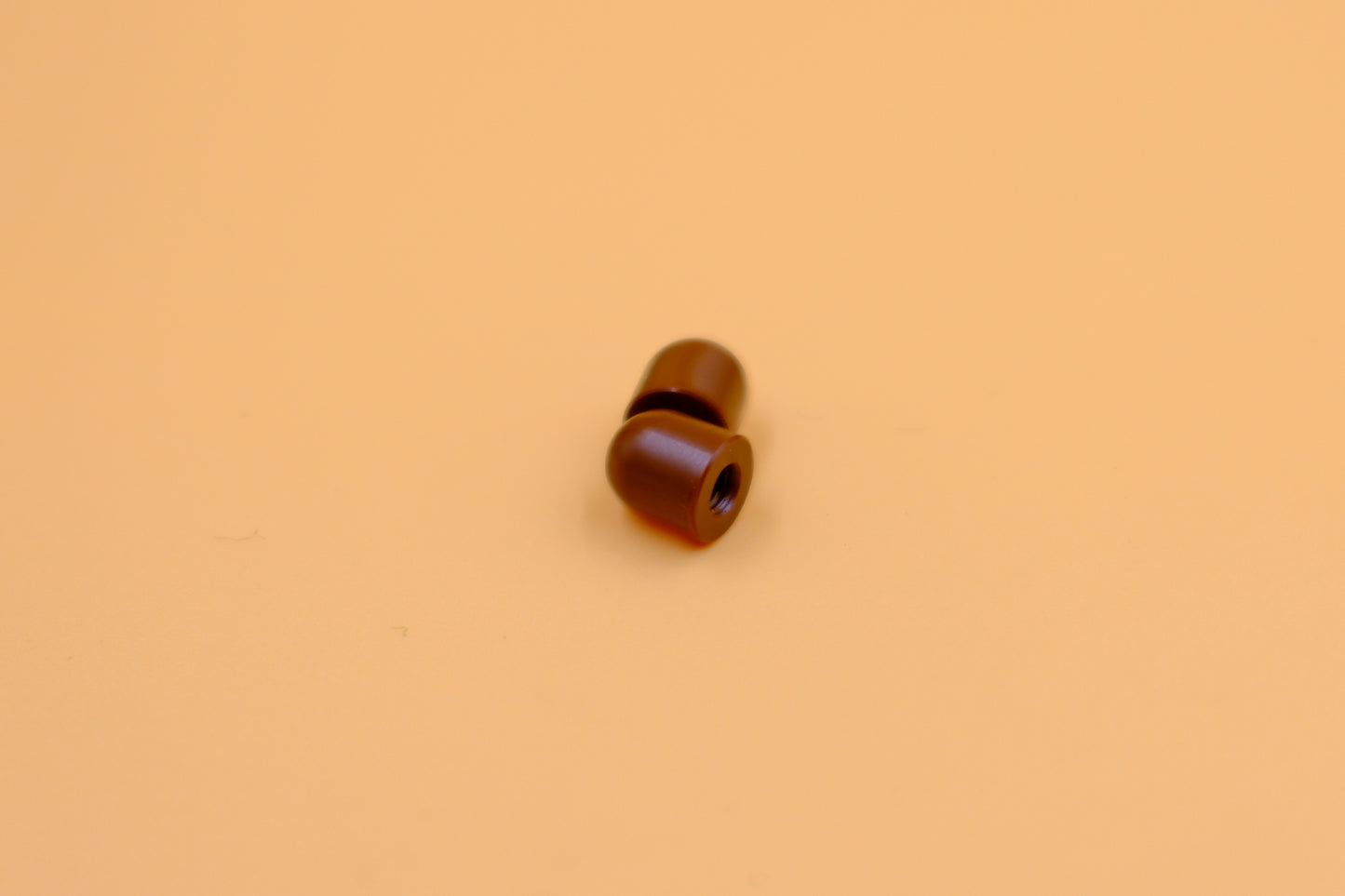

custom polyimide parts

custom polyimide parts

Custom Polyimide parts
Material in polyimide
Process:CNC machining ,CNC milling

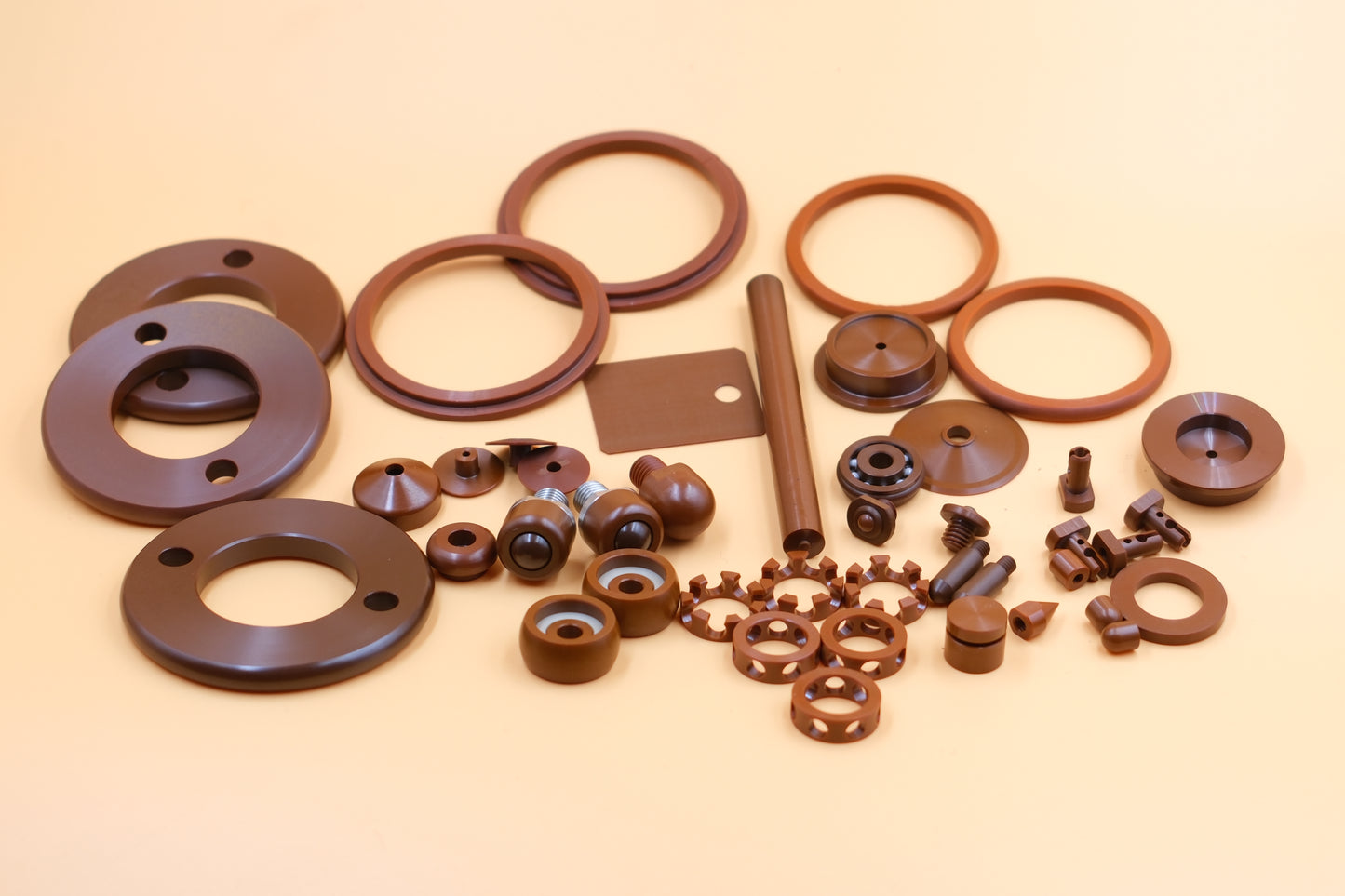

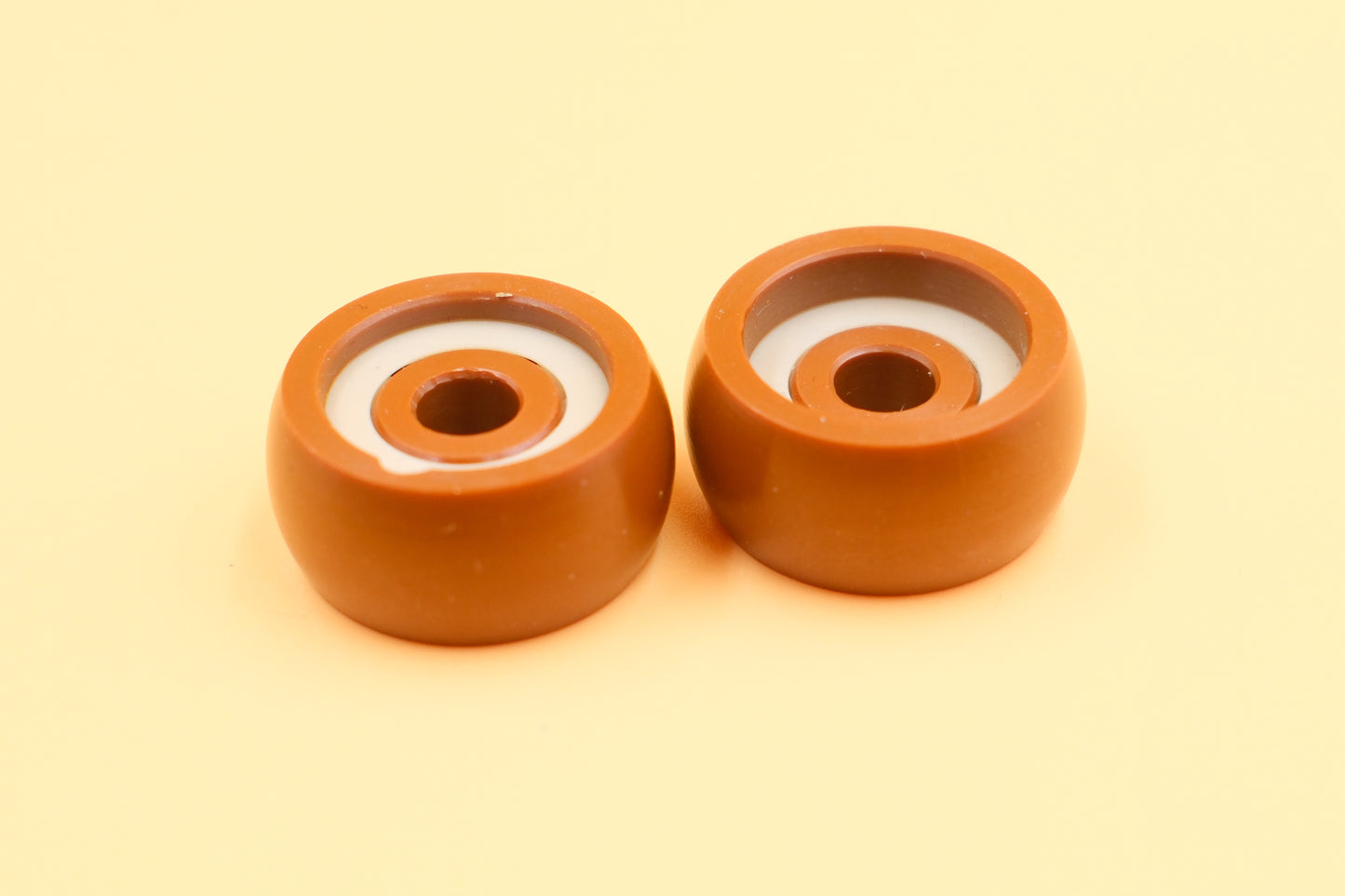

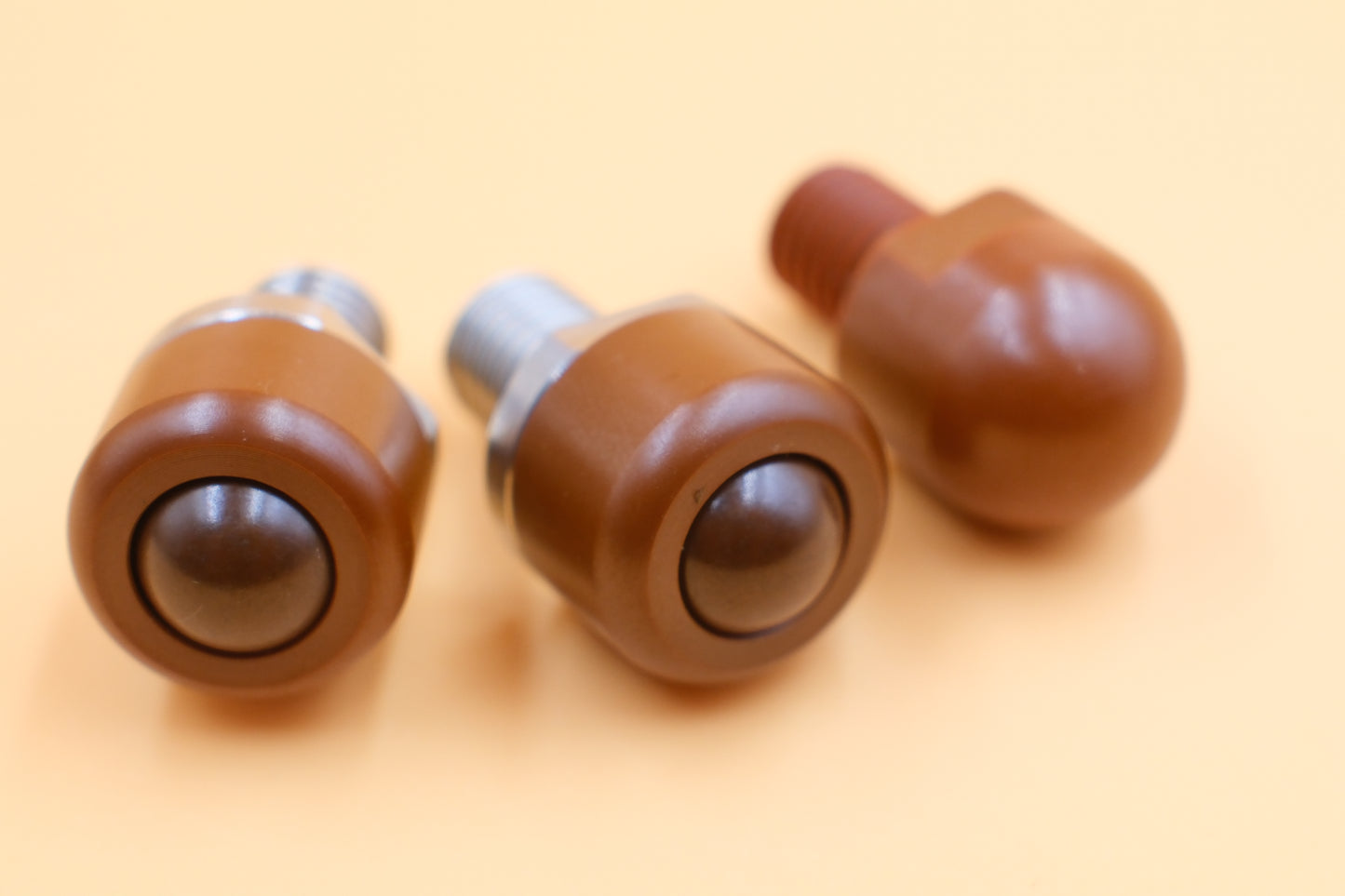

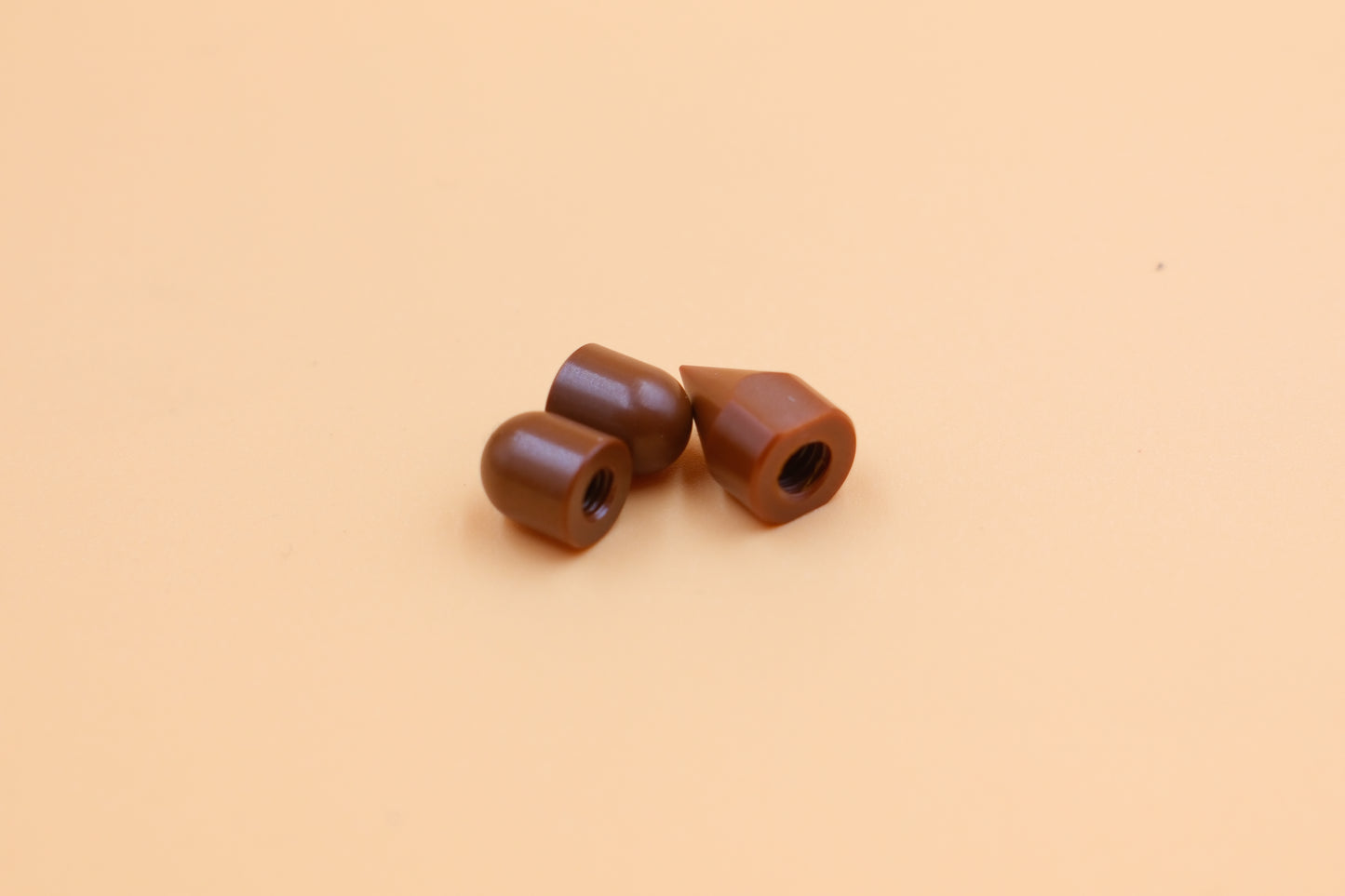

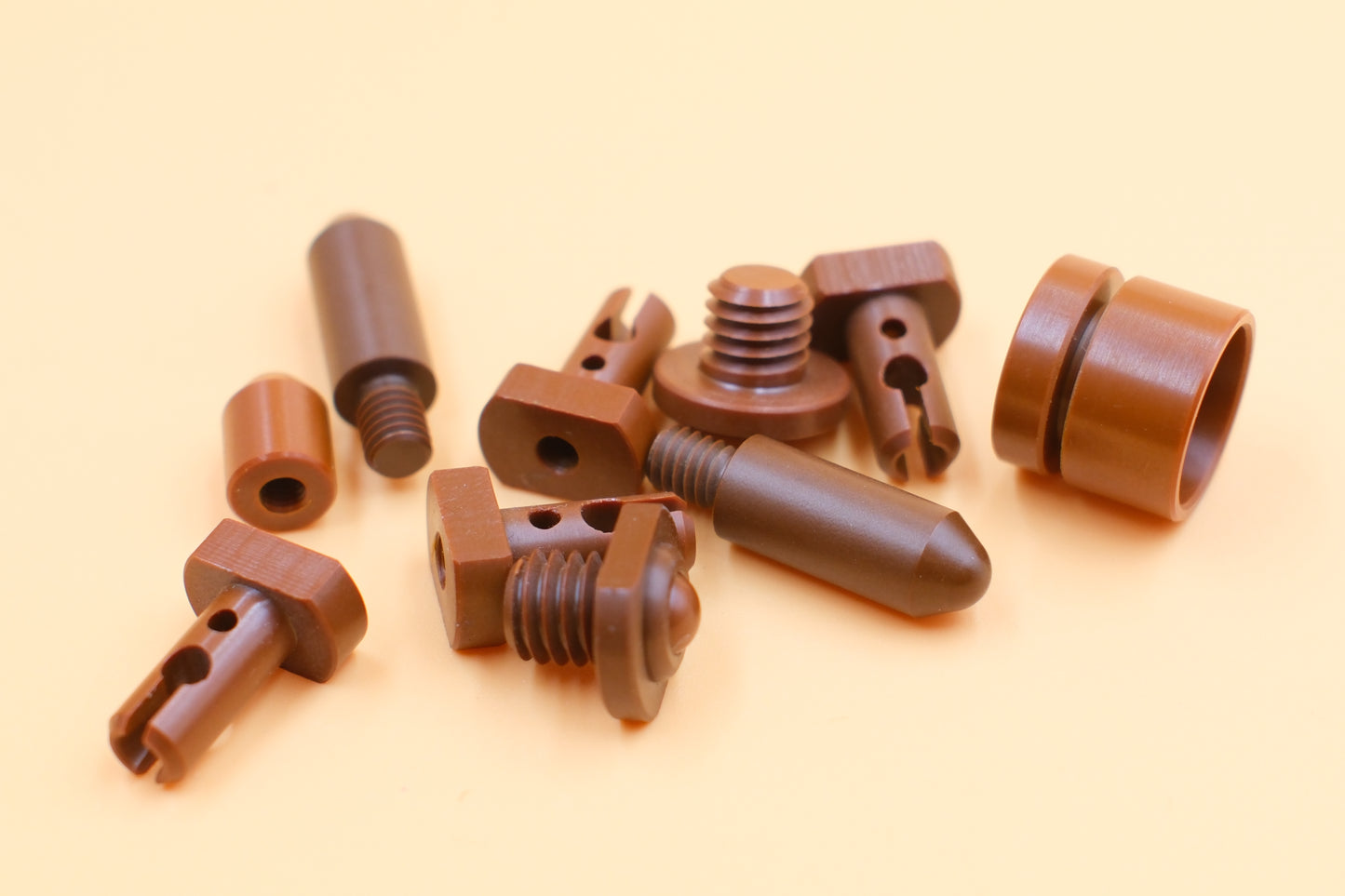

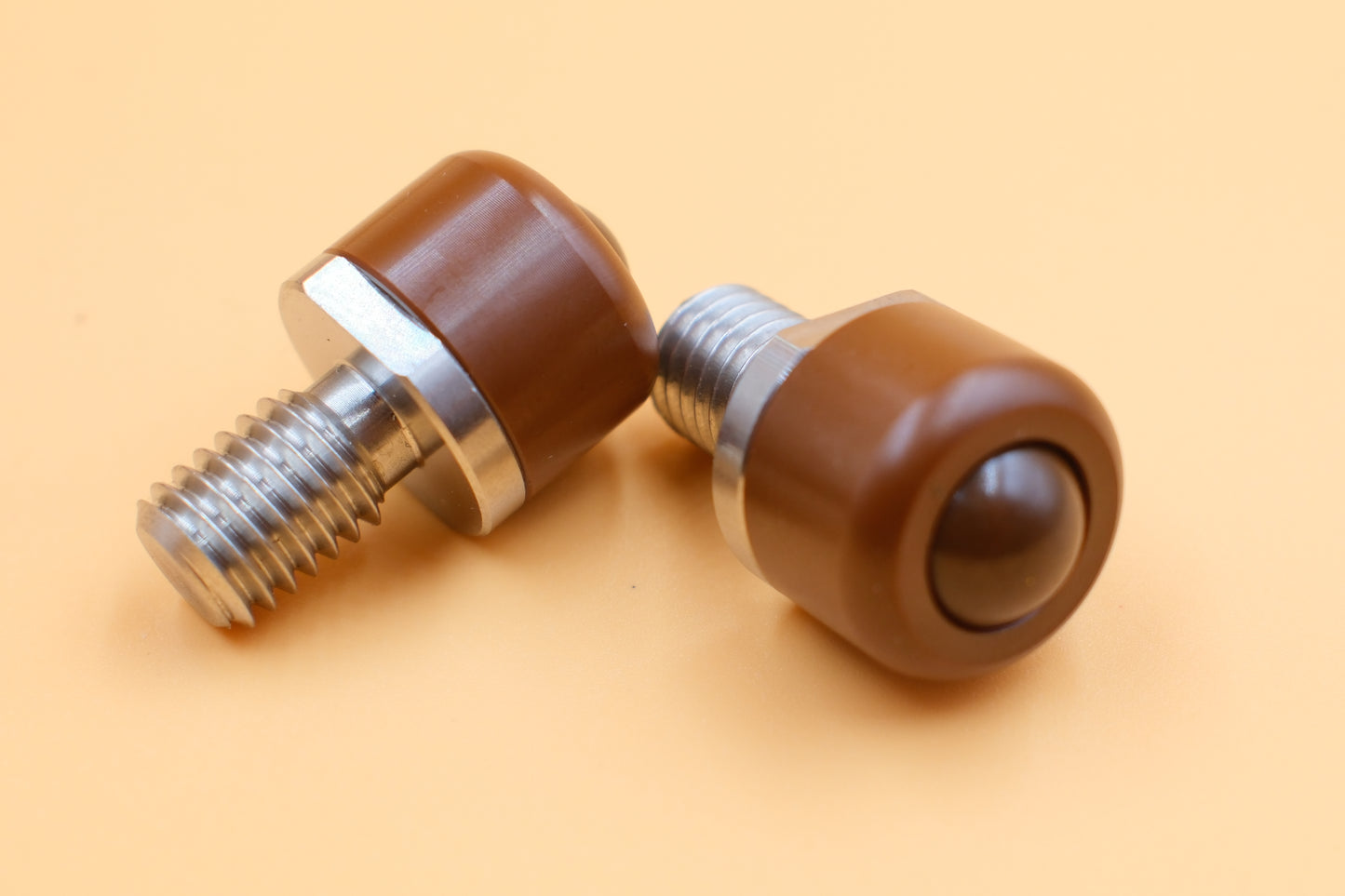

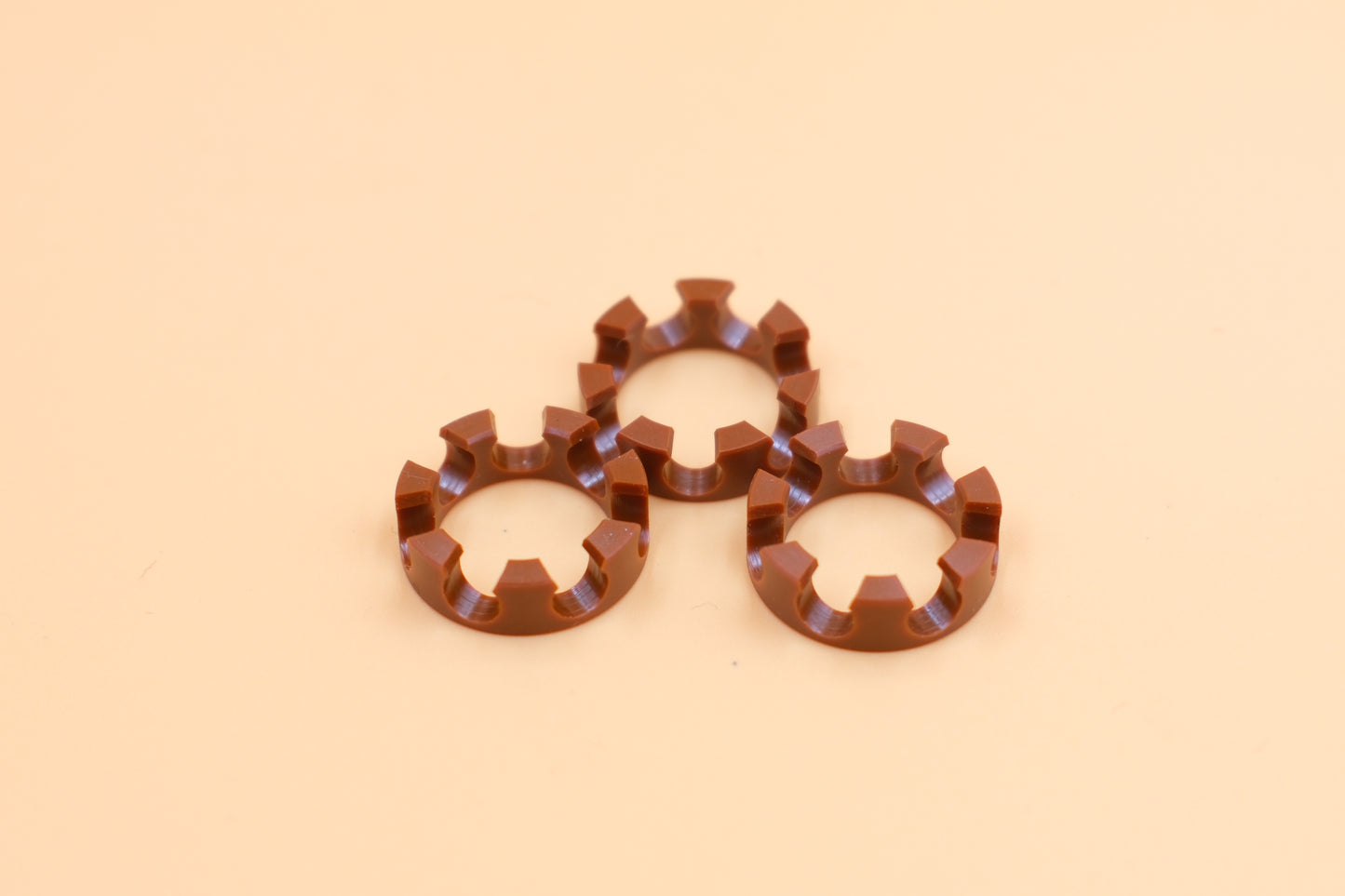

Precise machining parts : custom according to drawing,CAD file ,parts included pins,sealing rings, gasket, tip insulator,ball roller, and other special sharped parts

Product Description


Material of Pi
Polyimide(PI)
Polyimide is a non-melting high temperature polymer. Strength, dimensional stability, and creep resistance remain high even at temperatures above 260°C. Low wear rates combined with the ability to work under unlubricated conditions and high pV-rates makes it the ideal material for challenging friction and wear applications, extending lifetime and reducing maintenance costs. Its high purity and low outgassing are needed for applications in the vacuum, space and semiconductor industry.
Properties
• High strength, modulus and stiffness also at high temperatures over 260 °C
• Excellent dimensional stability to 350°C continuous use. (short term up to 400°C)
• Superior wear and creep resistance
• Exceptional performance under load and at high temperatures
• Low thermal and electrical conductivity
• Low coefficient of friction
• Good maichnability
Applications
• Semiconductor Industry: semiconductor manufacturing process equipment with high purity, high resistance. Such as wafer clamping rings, wafer carries, wafer guides, wafer tips, test sockets, die-pickup collets, vacuum pads, bearings, centering pins, alignment pins, insulators, screws & fasteners
• Automotive industry: thrust washer or piston rings in transmission and pumps replacing traditional metals
• Aero space industry: Jet engine parts such as pads, bumpers, seals and bearings
• Industrial machinery: nozzle tip insulators for hot runner nozzles used for injection molding of thermoplastic products such as PET preforms, PET caps
