Precision CNC Machined Guide Roller for Semiconductor, LCD/FPD & Industrial Automation



Precision CNC machined ESD UHMWPE guide roller featuring a crowned outer ring, fully machined ESD UHMWPE inner ring and cage, and zirconia ceramic balls. Designed for semiconductor equipment, LCD/FPD transfer systems and cleanroom automation requiring electrostatic control, low friction and long service life.

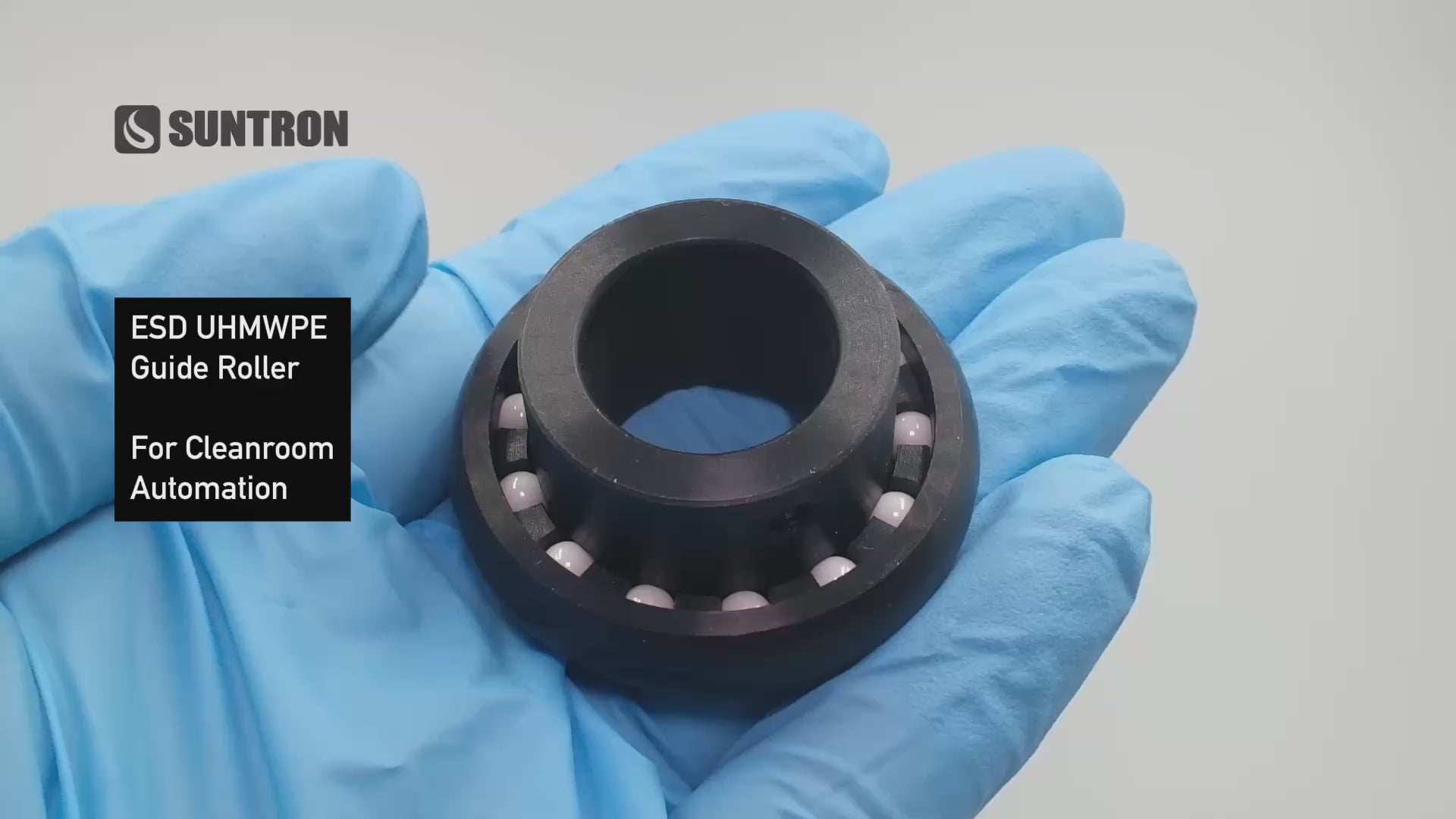

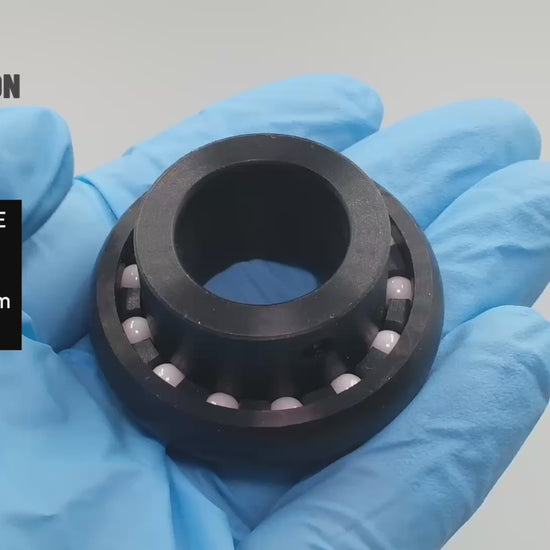

ESD UHMWPE Ceramic Guide Roller for Precision Motion Systems

SUNTRON manufactures precision CNC machined ESD UHMWPE guide rollers for demanding industrial applications where electrostatic control, wear resistance and smooth motion are essential.

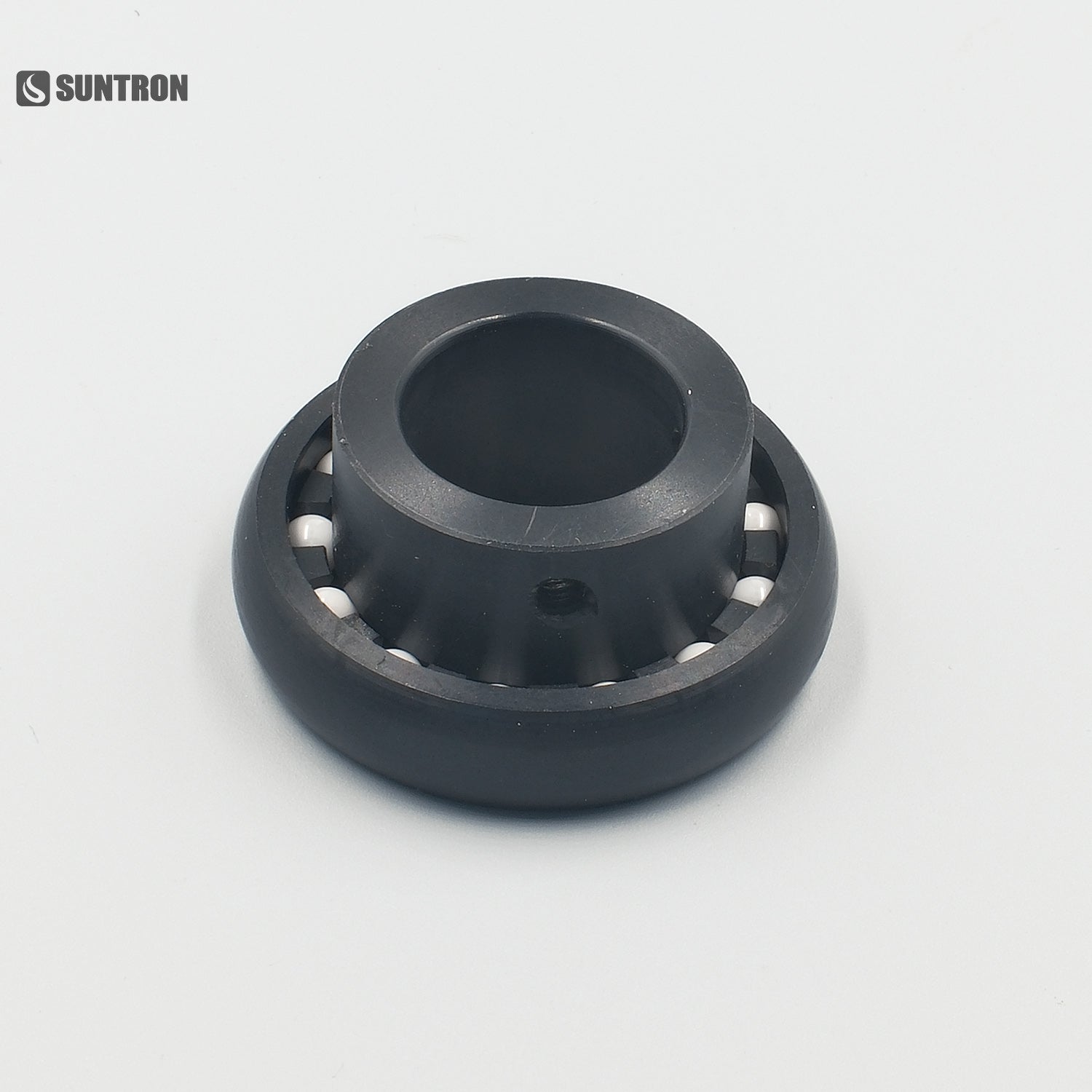

This hybrid design features a crowned ESD UHMWPE outer ring, precision machined ESD UHMWPE inner ring and cage, combined with zirconia ceramic balls for stable rolling performance and outstanding durability.

Compared with conventional plastic or metal rollers, this guide roller offers static dissipative performance, lower friction and excellent chemical resistance, making it ideal for cleanroom automation, semiconductor manufacturing and LCD/FPD glass handling equipment.

Every component is precision machined to ensure consistent quality, smooth operation and long service life.

---

Key Features

Fully CNC Machined ESD UHMWPE Structure

The outer ring, inner ring and cage are all precision machined from ESD UHMWPE, providing excellent dimensional consistency and reliable performance.

---

Static Dissipative Performance

ESD UHMWPE helps reduce electrostatic buildup, making it suitable for electronics manufacturing and cleanroom applications.

---

Zirconia Ceramic Balls

High-performance ceramic balls provide:

• Excellent wear resistance
• Smooth rolling motion
• Corrosion resistance
• Long service life

---

Crowned Outer Ring Design

The curved outer profile improves guiding stability and minimizes localized contact stress during continuous operation.

---

Low Friction & Wear Resistant

The combination of ESD UHMWPE and zirconia ceramic delivers smooth movement with reduced maintenance requirements.

---

Custom Manufacturing

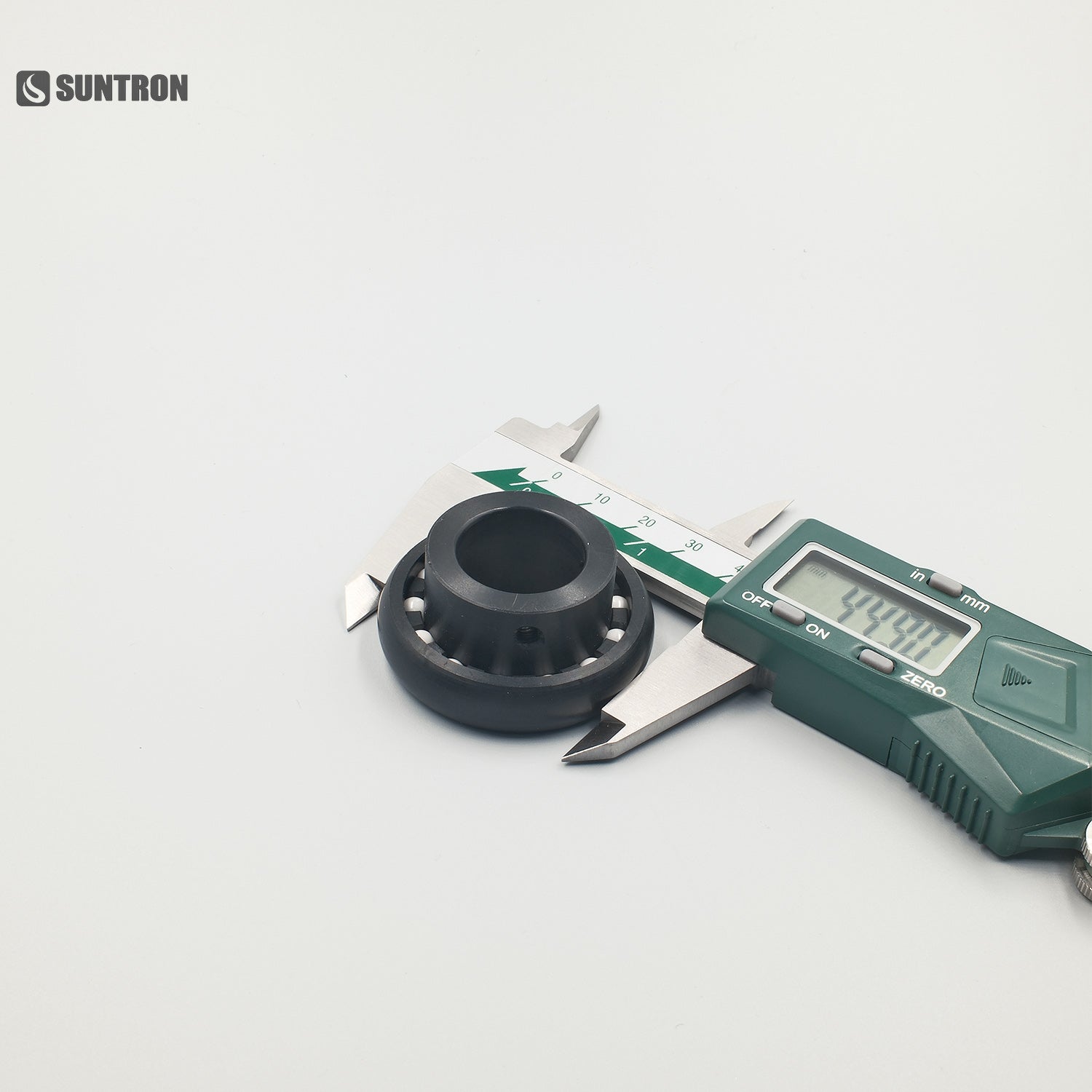

Available in customized diameters, bore sizes, roller profiles and material combinations according to customer drawings.

---

Technical Specifications

Item	Specification
Product Type	ESD UHMWPE Ceramic Guide Roller
Roller Profile	Crowned
Outer Ring Material	ESD UHMWPE
Inner Ring Material	ESD UHMWPE
Cage Material	ESD UHMWPE
Ball Material	Zirconia Ceramic (ZrO₂)
Manufacturing Process	CNC Precision Machining
Static Property	Static Dissipative
Custom Manufacturing	Available

Typical Applications

Designed for precision motion and transfer systems including:

Semiconductor Equipment

• Wafer transfer systems
• Precision handling modules
• Cleanroom automation

LCD / FPD Manufacturing

• Glass panel transfer
• Panel handling systems
• Wet process equipment

Electronics Manufacturing

• Static-sensitive production equipment
• Precision positioning systems

Industrial Automation

• Precision guide systems
• Conveyor mechanisms
• Automated transfer equipment

---

Why Choose SUNTRON?

SUNTRON specializes in CNC machining of high-performance engineering plastics for demanding industrial applications.

Our capabilities include:

• ESD UHMWPE components
• PEEK precision parts
• PI high-temperature components
• PTFE wear parts
• Hybrid ceramic rollers
• OEM & custom manufacturing

From prototype development to mass production, we provide reliable engineering plastic solutions for global industrial customers.

---

FAQ

1. What makes this guide roller different from a standard UHMWPE roller?

This roller uses ESD UHMWPE throughout the outer ring, inner ring and cage, combined with zirconia ceramic balls to provide electrostatic control and enhanced durability.

---

2. Why use ESD UHMWPE?

ESD UHMWPE combines the low friction and wear resistance of UHMWPE with static dissipative properties, making it suitable for electronics and cleanroom environments.

---

3. Why are zirconia ceramic balls used?

Zirconia ceramic balls provide high hardness, corrosion resistance, smooth rolling performance and extended service life.

---

4. Is this roller suitable for semiconductor equipment?

Yes. It is designed for semiconductor handling systems, cleanroom automation and other static-sensitive applications.

---

5. Can the dimensions be customized?

Yes. SUNTRON manufactures rollers according to customer drawings, including custom diameters, bores and profiles.

---

6. Can different ESD resistance levels be supplied?

Yes. Different static dissipative grades can be selected according to application requirements.

---

7. What other engineering plastics do you machine?

We manufacture precision components in ESD UHMWPE, PEEK, PI, PTFE, POM and other engineering plastics.

---

8. Do you support prototype orders?

Yes. Prototype samples, low-volume production and full-scale manufacturing are all available.
