Custom CNC machined PTFE alignment ring designed for LCD glass cleaning systems and precision handling equipment. Featuring a smooth rounded surface, excellent chemical resistance, and low friction performance, this PTFE component helps provide stable positioning and protection for sensitive glass panels in clean manufacturing environments.

---

Product Description

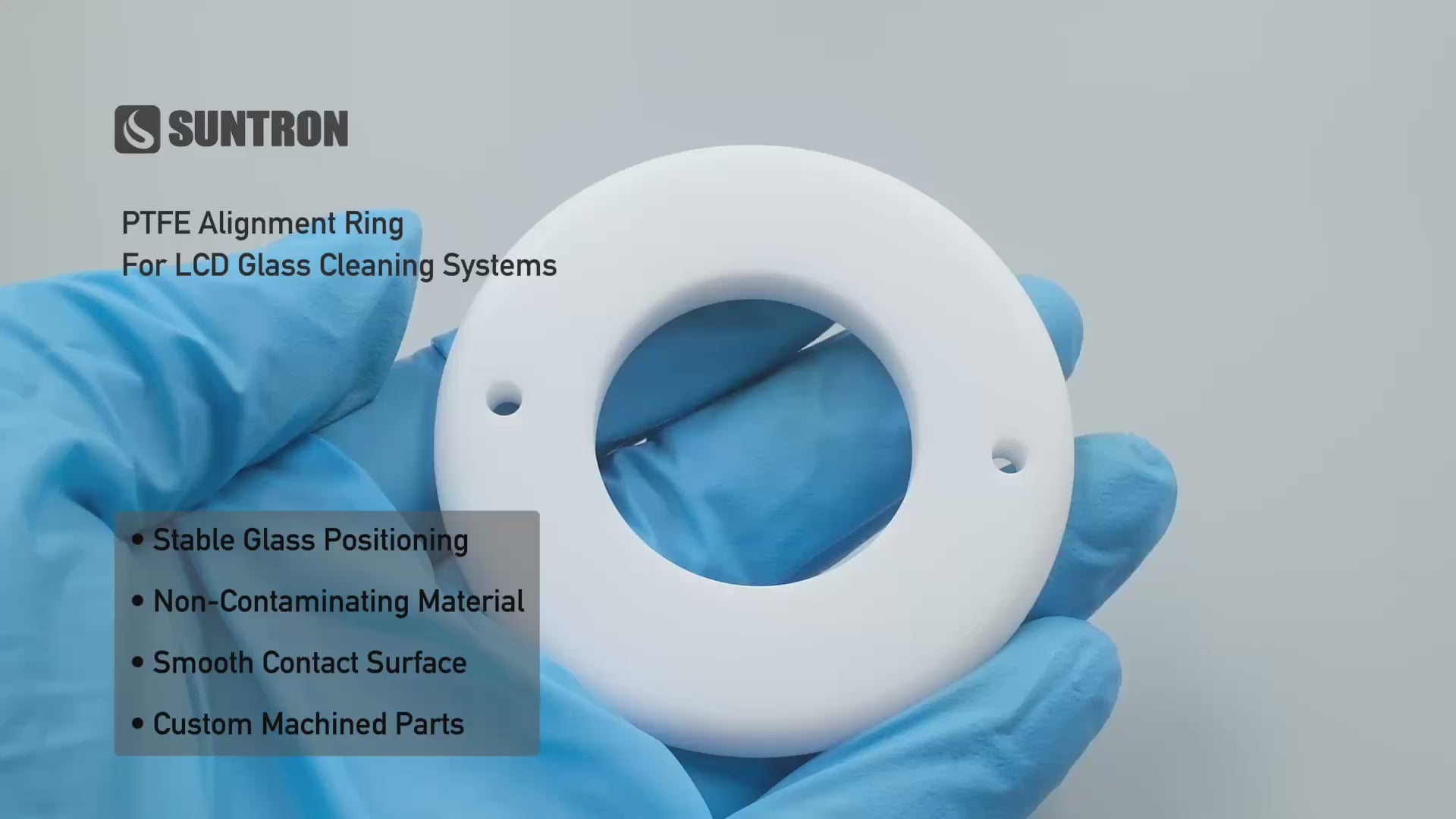

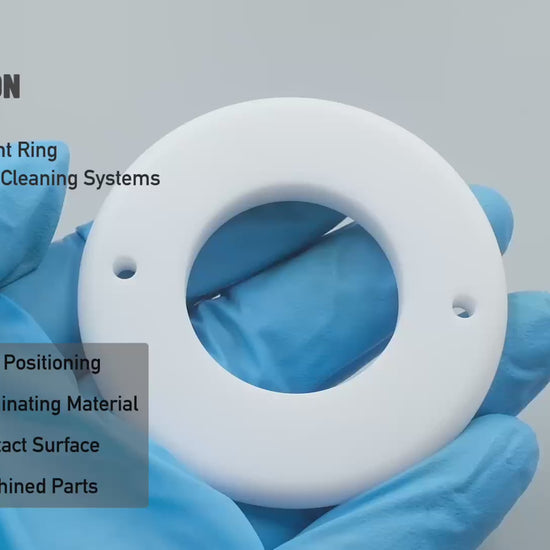

Precision PTFE Alignment Ring for LCD Glass Handling Systems

Suntron manufactures custom CNC machined PTFE alignment rings for LCD glass cleaning equipment, wet process systems, and precision automation applications.

Made from high-performance PTFE material, this component provides excellent chemical resistance, low friction characteristics, and stable performance in demanding environments. The smooth rounded edge design helps reduce contact stress and protect glass surfaces during positioning and handling.

With precision CNC machining capabilities, Suntron can produce customized PTFE rings according to equipment requirements, drawings, or samples.

---

Key Features

Designed for LCD Glass Handling

Specially suitable for glass cleaning systems, positioning fixtures, and precision transfer equipment.

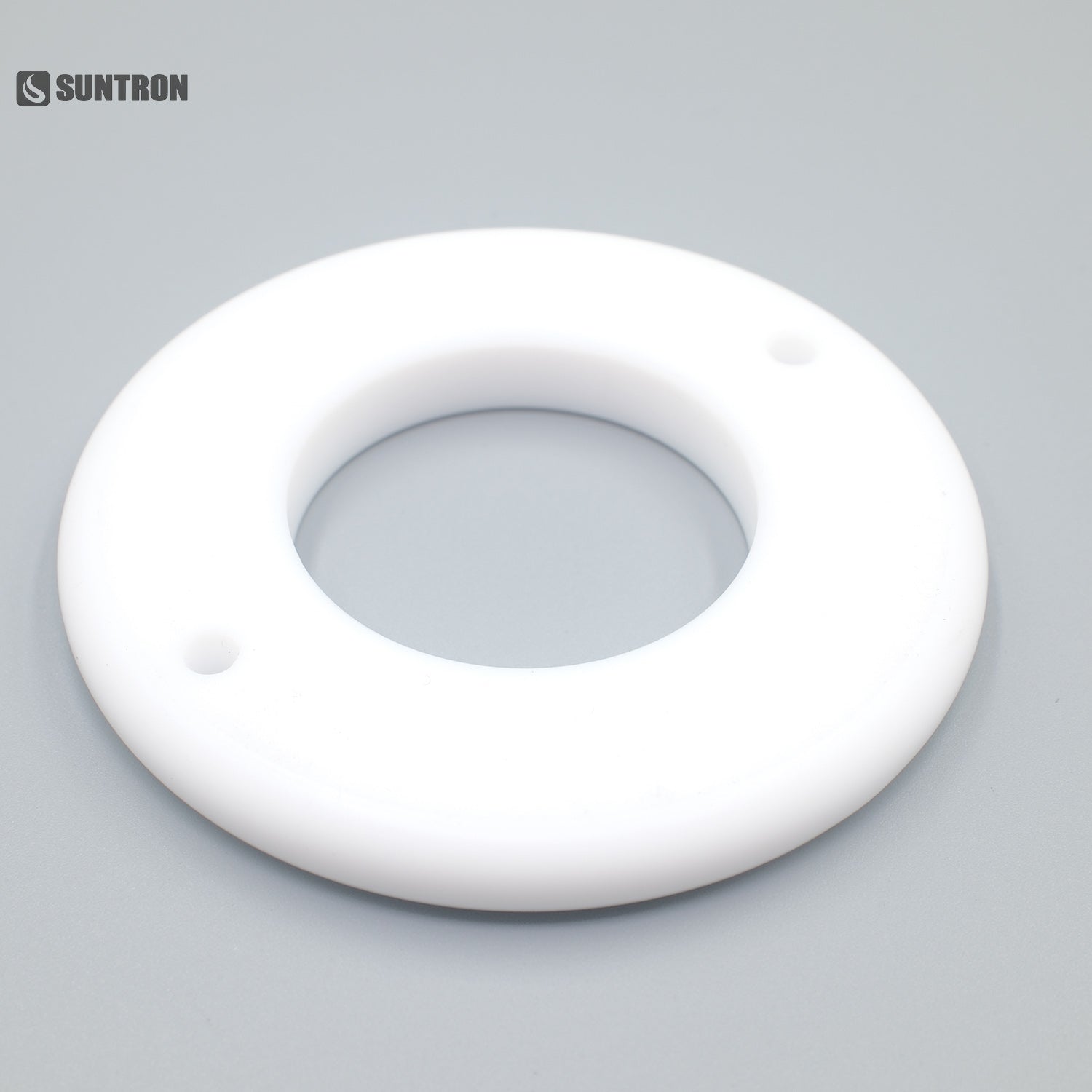

Smooth Rounded Edge Design

The rounded surface helps minimize contact damage and provides smoother interaction with glass panels.

Chemical Resistant PTFE Material

PTFE offers excellent resistance to cleaning chemicals, solvents, and corrosive environments.

Low Friction Performance

The natural low-friction characteristics of PTFE help reduce wear and improve operational stability.

Precision CNC Machined

Accurate dimensions and smooth surface finish ensure reliable installation and consistent performance.

Custom Manufacturing Available

Dimensions, holes, structures, and material specifications can be customized.

---

Specifications

Item	Description
Product Type	PTFE Alignment Ring
Material	PTFE (Polytetrafluoroethylene)
Outer Diameter	64.3 mm

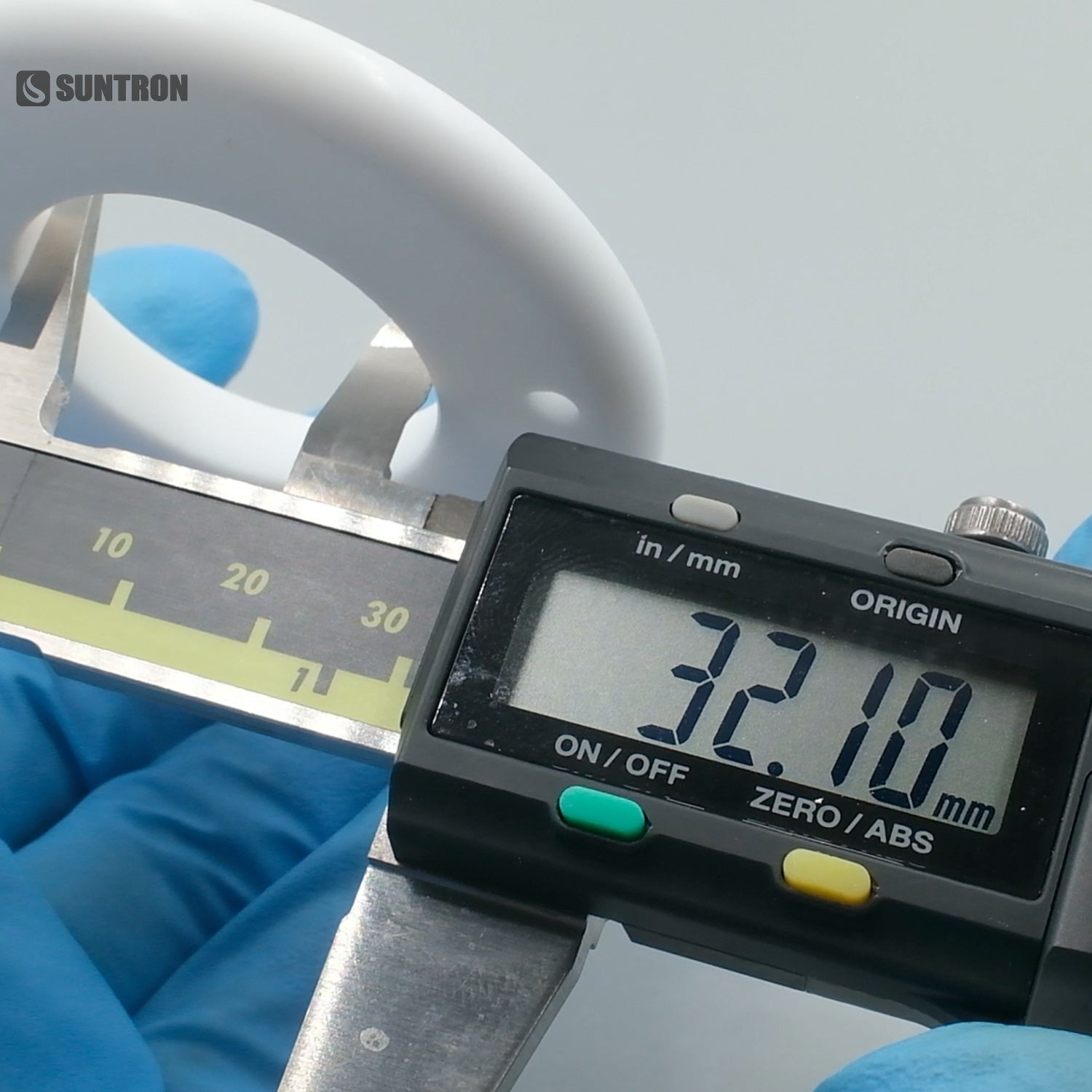

Inner Diameter	32.1 mm
Thickness	7 mm
Manufacturing Process	CNC Precision Machining
Surface Finish	Smooth Machined Surface
Customization	Available

Applications

LCD & Display Manufacturing

• LCD glass cleaning equipment
• Flat panel display production lines
• Glass positioning fixtures
• Wet process systems

Semiconductor & Clean Manufacturing

• Precision handling equipment
• Chemical process systems
• Cleanroom automation equipment

Industrial Automation

• Non-metal contact components
• Precision positioning mechanisms
• Customized plastic machine parts

---

Why Choose Suntron?

✓ Professional CNC machining manufacturer for engineering plastics
✓ Specialized in PTFE, PEEK, PI, POM and UHMWPE materials
✓ Precision machining capability for complex plastic components
✓ Custom solutions based on drawings or samples
✓ Prototype and production support

---

FAQ

Q1: What is this PTFE alignment ring used for?

This component is mainly used in LCD glass cleaning equipment, glass handling systems, and precision positioning applications.

Q2: Why is PTFE used for this application?

PTFE provides excellent chemical resistance, low friction, and clean operation, making it suitable for wet process environments.

Q3: Can this ring be customized?

Yes. Outer diameter, inner diameter, thickness, holes, and other structures can be customized.

Q4: Is this suitable for LCD manufacturing equipment?

Yes. PTFE alignment rings are commonly used in LCD glass cleaning and handling systems.

Q5: Does the rounded edge protect glass?

Yes. The smooth rounded design helps reduce contact stress and minimize potential surface damage.

Q6: What CNC machining accuracy can you achieve?

Precision depends on size and geometry, but Suntron can achieve tight tolerances for industrial plastic components.

Q7: Can you provide samples?

Yes. Prototype samples are available for testing before production.

Q8: What other plastic materials can you machine?

We provide CNC machining services for PTFE, PEEK, PI, POM, UHMWPE, Nylon, and other engineering plastics.
