Precision CNC machined UHMWPE curved guide roller featuring stainless steel balls and nylon cage. Designed for low friction, wear resistance and reliable performance in industrial motion systems.

---

Full Product Description

UHMWPE Curved Guide Roller for Industrial Applications

SUNTRON manufactures precision CNC machined UHMWPE guide rollers designed for smooth and reliable motion control.

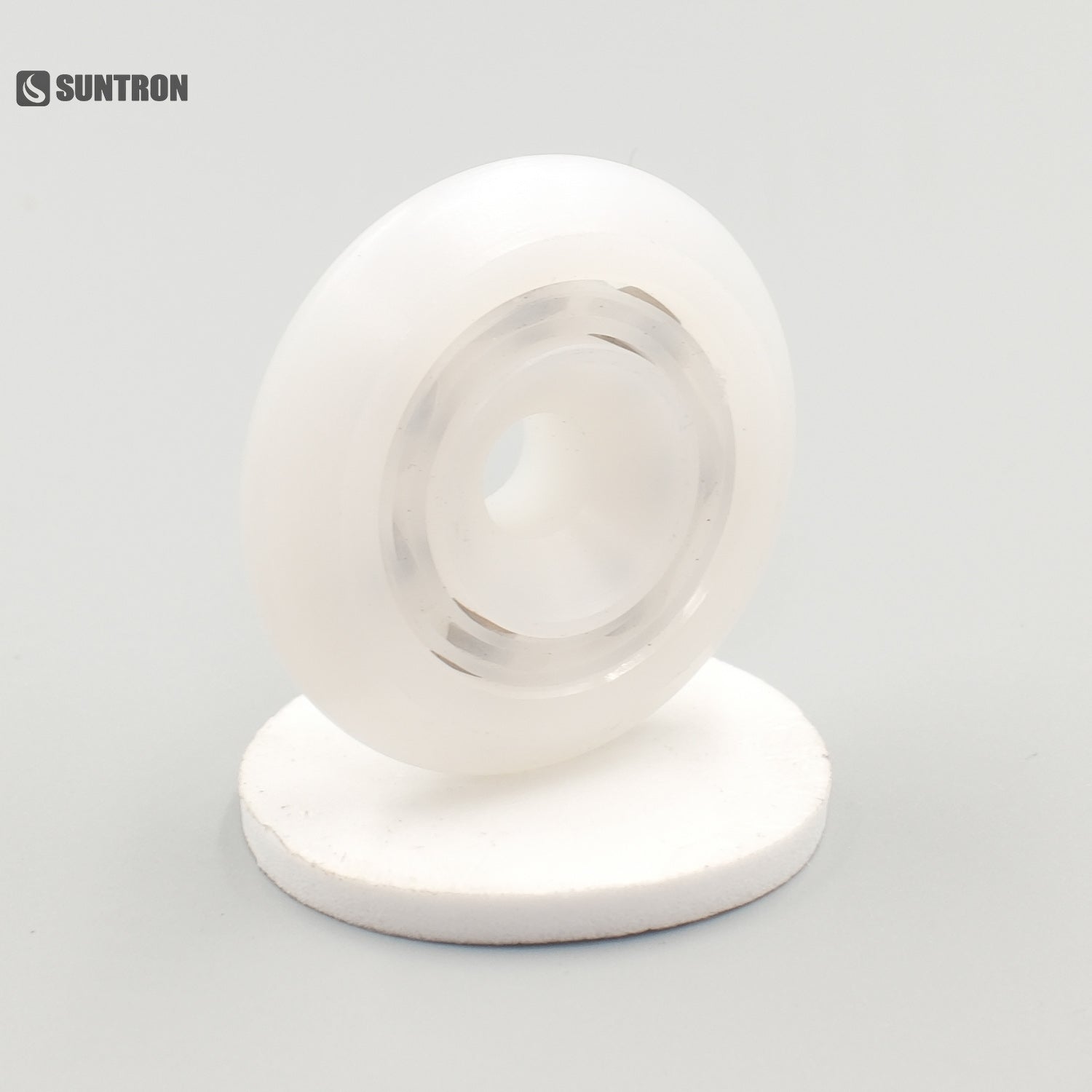

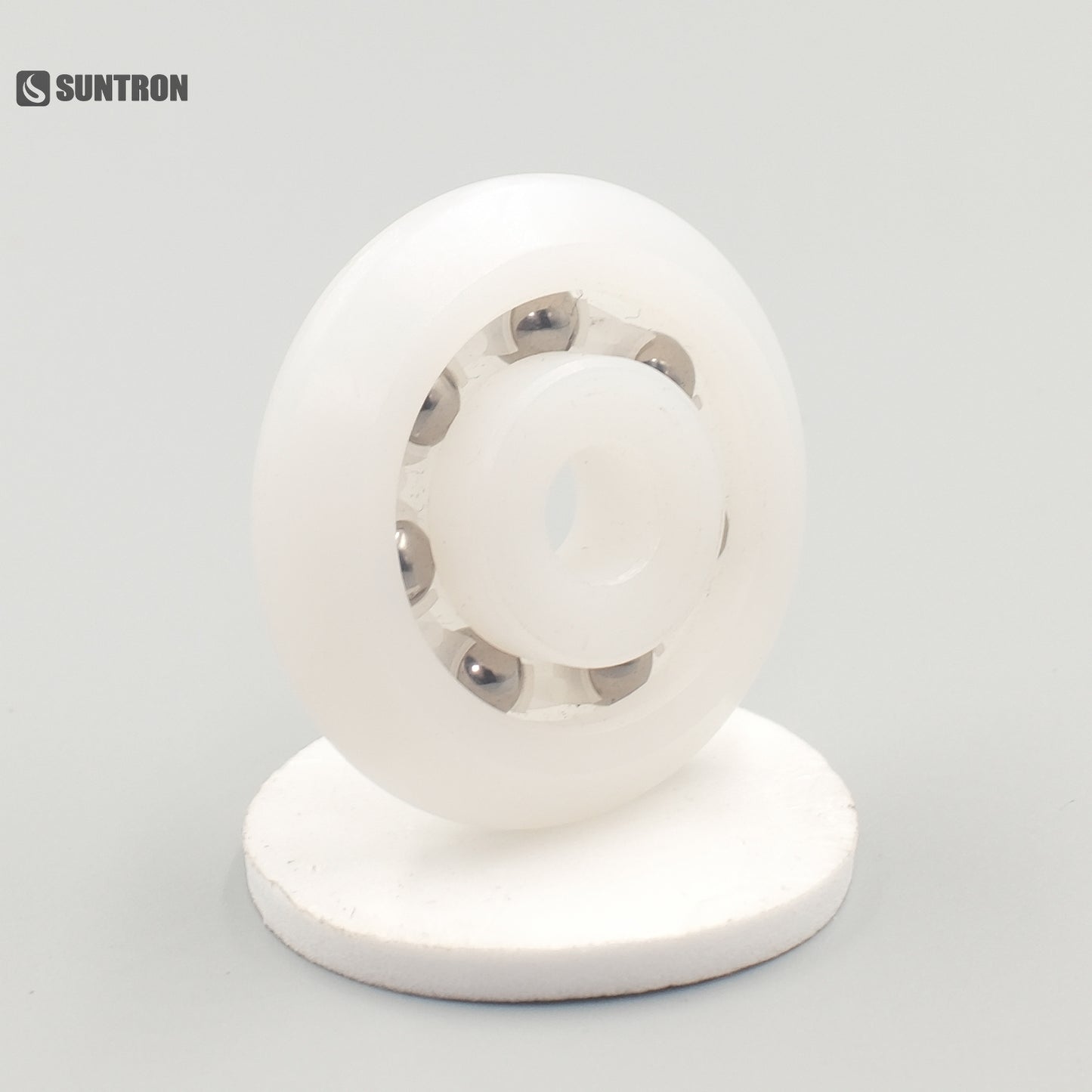

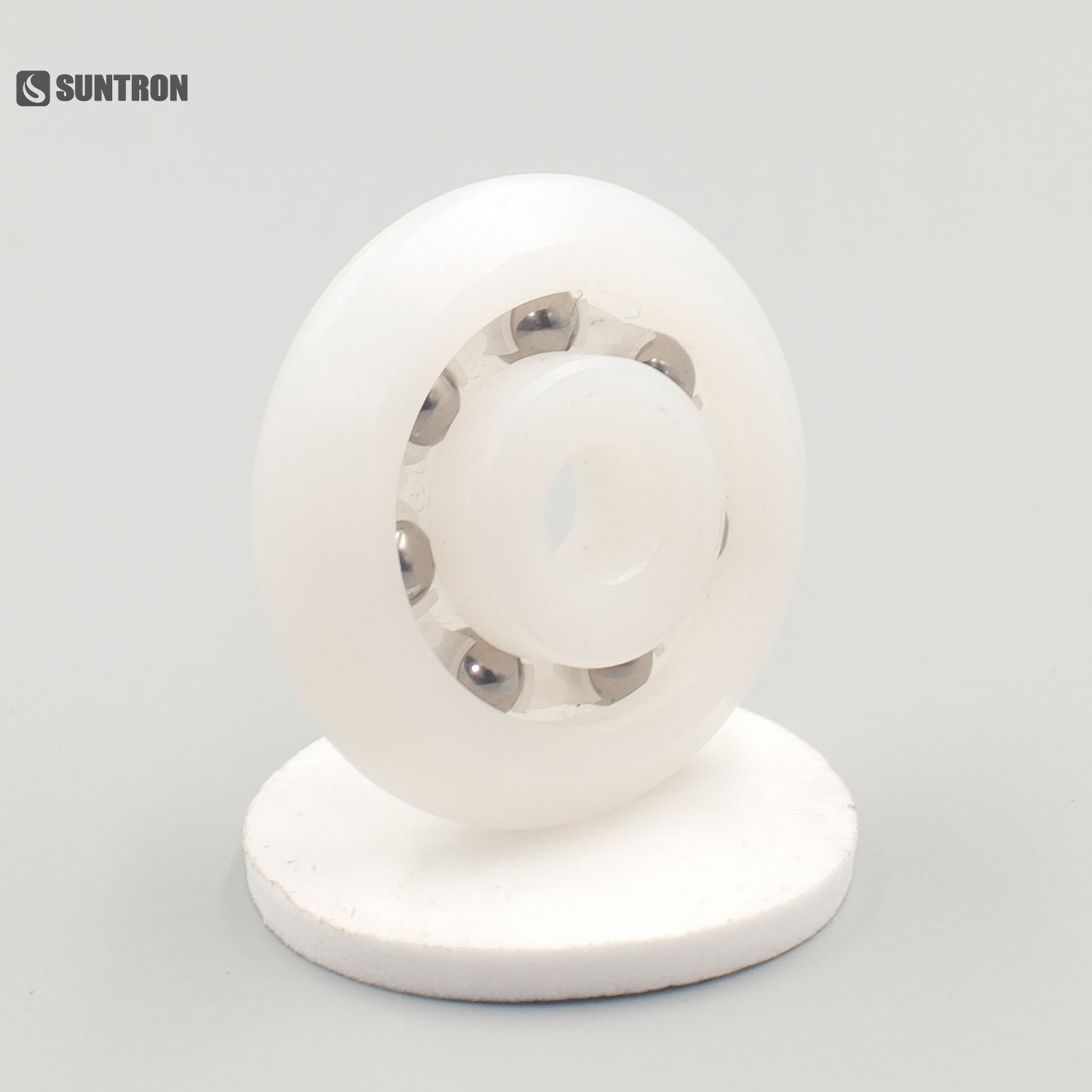

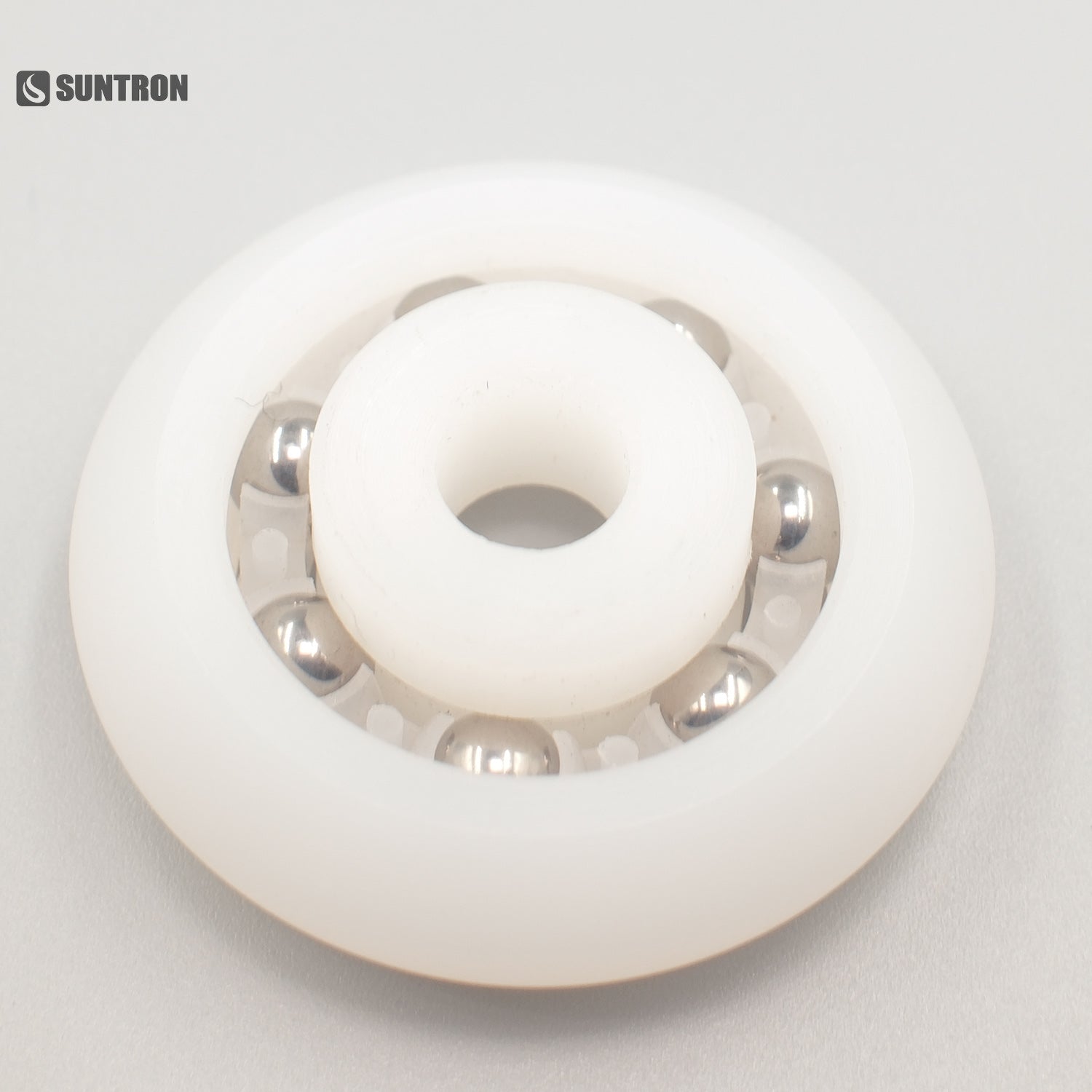

This curved guide roller features a UHMWPE outer ring and inner ring with a precision-machined structure, combined with a nylon cage and stainless steel balls. The curved outer surface provides stable guiding performance while reducing friction and wear during continuous operation.

UHMWPE (Ultra High Molecular Weight Polyethylene) is widely used in demanding industrial applications due to its excellent abrasion resistance, low friction coefficient and corrosion resistance.

Compared with conventional metal rollers, UHMWPE rollers offer advantages including lightweight design, quiet operation and suitability for harsh working environments.

SUNTRON provides customized engineering plastic components according to drawings, dimensions and application requirements.

---

Key Features

Precision CNC Machined UHMWPE Structure

The roller is manufactured through CNC machining to achieve accurate dimensions and consistent performance.

Low Friction Performance

UHMWPE naturally provides excellent sliding properties, helping reduce resistance during operation.

Wear Resistant Material

High abrasion resistance makes this roller suitable for long-term continuous movement.

Stainless Steel Ball Configuration

Precision stainless steel balls ensure smooth rotation and stable guiding performance.

Corrosion Resistant Solution

Suitable for applications exposed to moisture, cleaning processes or chemical environments.

Compact Industrial Design

The lightweight structure allows easy integration into precision equipment.

Custom Manufacturing Available

Different diameters, widths, materials and internal structures can be customized.

---

Technical Specification

Parameter	Specification
Product Type	UHMWPE Curved Guide Roller
Outer Ring Material	UHMWPE
Inner Ring Material	UHMWPE
Cage Material	Nylon
Ball Material	Stainless Steel

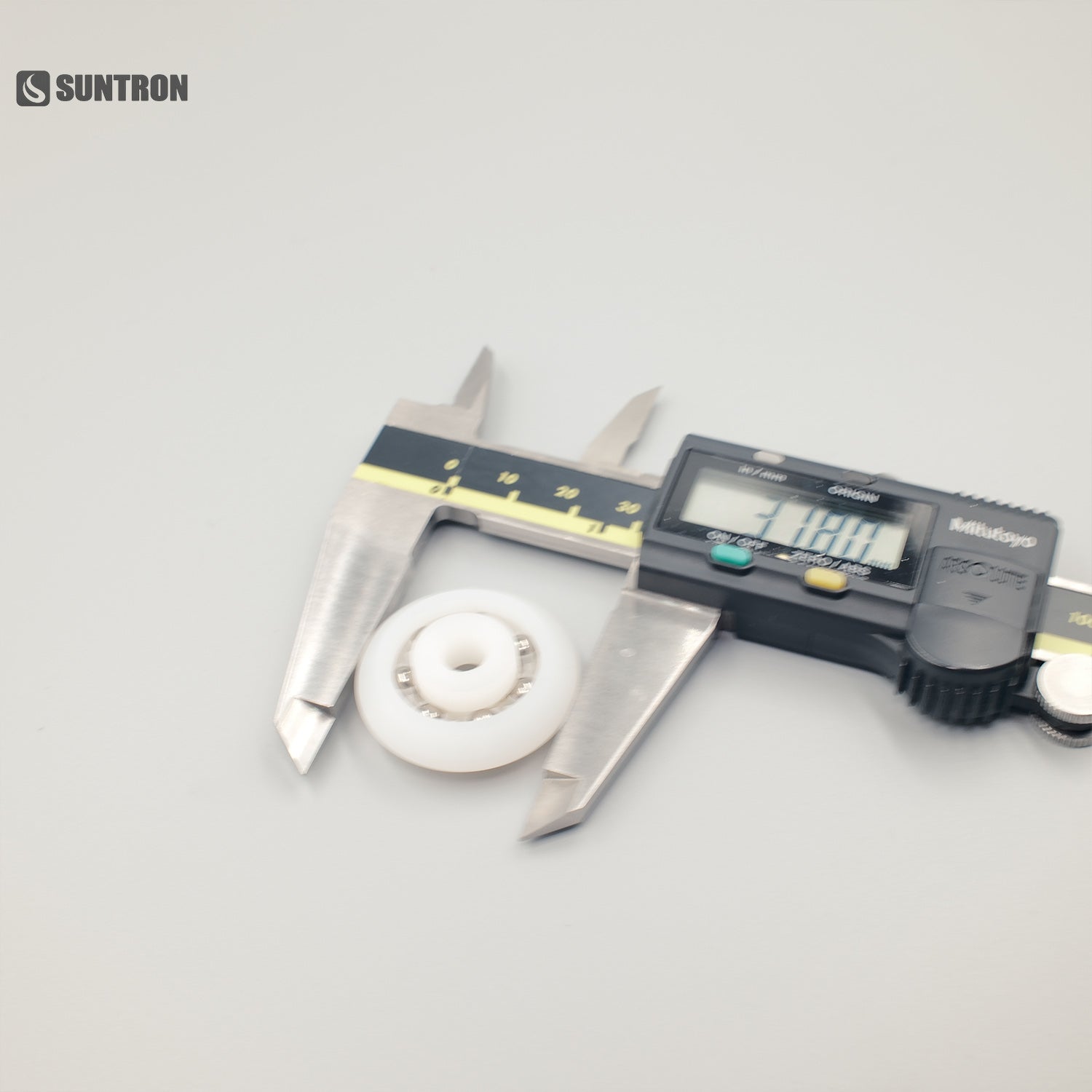

Outer Diameter	31.8 mm
Structure	Curved Outer Surface
Manufacturing Process	CNC Precision Machining
Customization	Available

Applications

Precision Automation Equipment

Used in:

• Linear motion systems
• Guide mechanisms
• Automated positioning equipment

---

Semiconductor & Electronics Equipment

Suitable for:

• Cleanroom transfer systems
• Inspection equipment
• Precision handling systems

---

Conveyor and Transfer Systems

Used for:

• Material guiding
• Product positioning
• Low friction transport systems

---

Packaging Machinery

Provides stable movement for continuous production equipment.

---

Other Industrial Applications

Suitable for:

• Textile machinery
• Medical equipment
• Food processing equipment
• Special automation systems

---

Why Choose UHMWPE Guide Rollers?

UHMWPE combines several important properties:

✓ Excellent wear resistance
✓ Low friction coefficient
✓ Chemical resistance
✓ Lightweight structure
✓ Quiet operation
✓ Long service life

These advantages make UHMWPE an ideal material for precision industrial rollers.

---

FAQ

1. What is a UHMWPE curved guide roller?

A UHMWPE curved guide roller is a precision roller with a curved outer surface designed for stable guiding and smooth movement in industrial equipment.

---

2. Why use UHMWPE instead of metal?

UHMWPE provides lower friction, better corrosion resistance and lighter weight compared with traditional metal rollers.

---

3. What materials are used in this roller?

The outer ring and inner ring are UHMWPE, the cage is nylon, and the rolling elements are stainless steel balls.

---

4. Can you customize the roller size?

Yes. SUNTRON supports customized dimensions, structures and materials according to customer drawings.

---

5. Can ceramic balls be used?

Yes. Ceramic balls such as ZrO₂ or Si₃N₄ are available for applications requiring higher performance.

---

6. What industries use UHMWPE rollers?

They are commonly used in automation, semiconductor equipment, conveyors, packaging machinery and precision motion systems.

---

7. What machining accuracy can you achieve?

SUNTRON can achieve CNC machining tolerances down to approximately ±0.01 mm depending on material and geometry.

---

8. Do you support prototypes and small quantities?

Yes. We support prototype development, small batch production and volume manufacturing.
