High precision PTFE guide roller designed for LCD cleaning systems, wet process equipment and chemical-resistant transfer applications. Featuring CNC machined PTFE raceways and zirconia ceramic balls, this roller provides smooth movement, low friction and reliable performance in demanding industrial environments.

---

Product Description

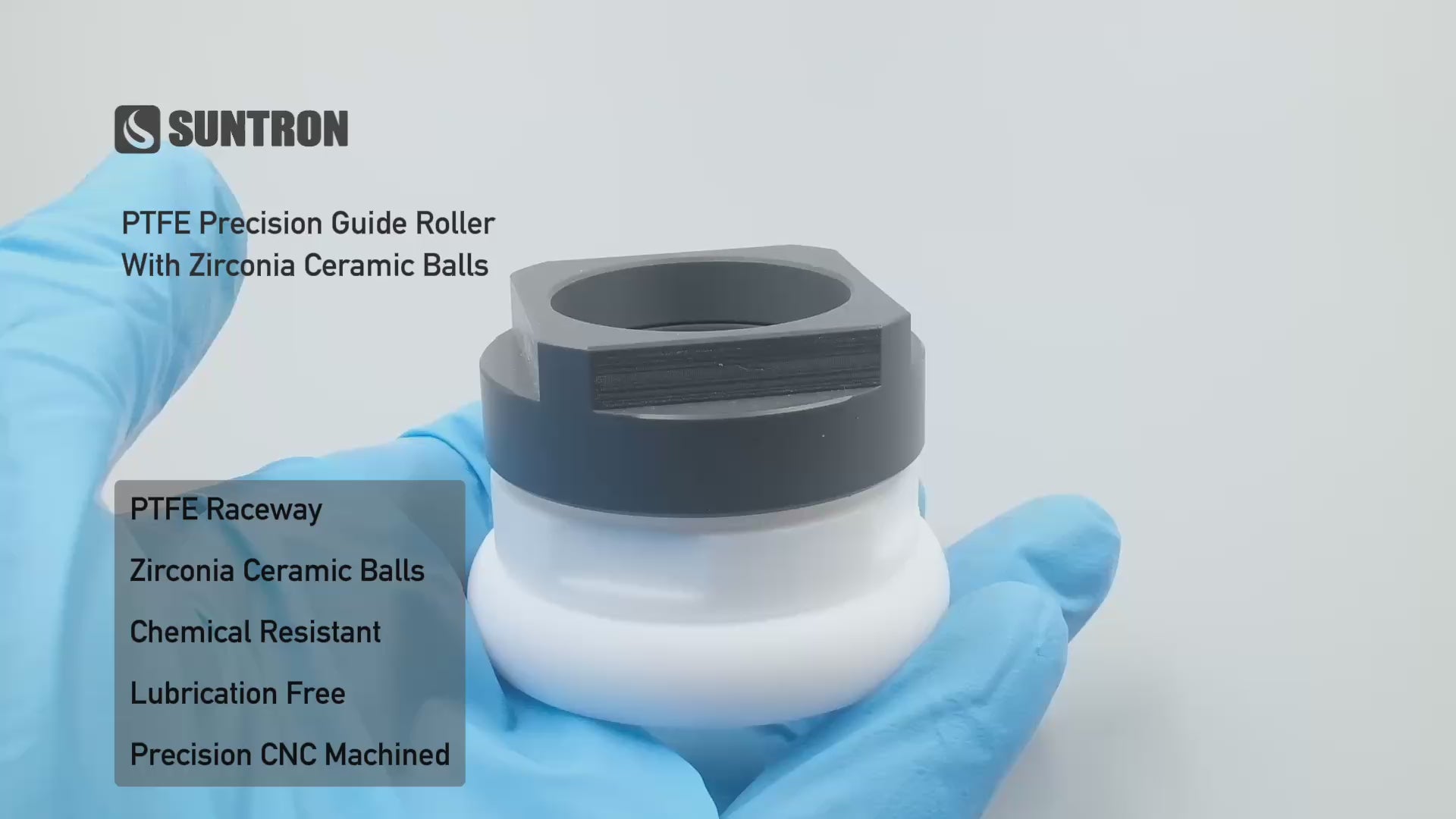

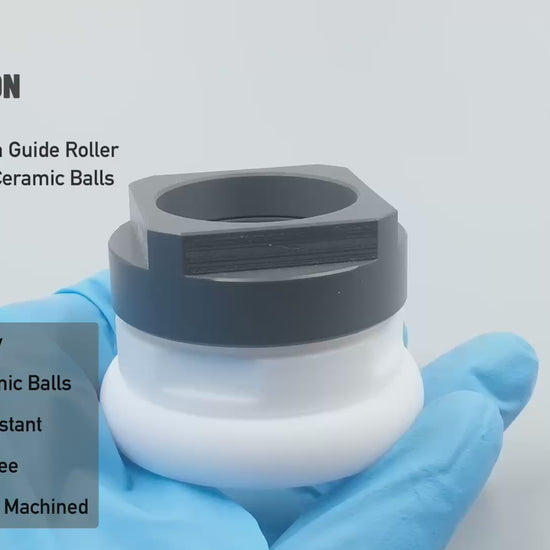

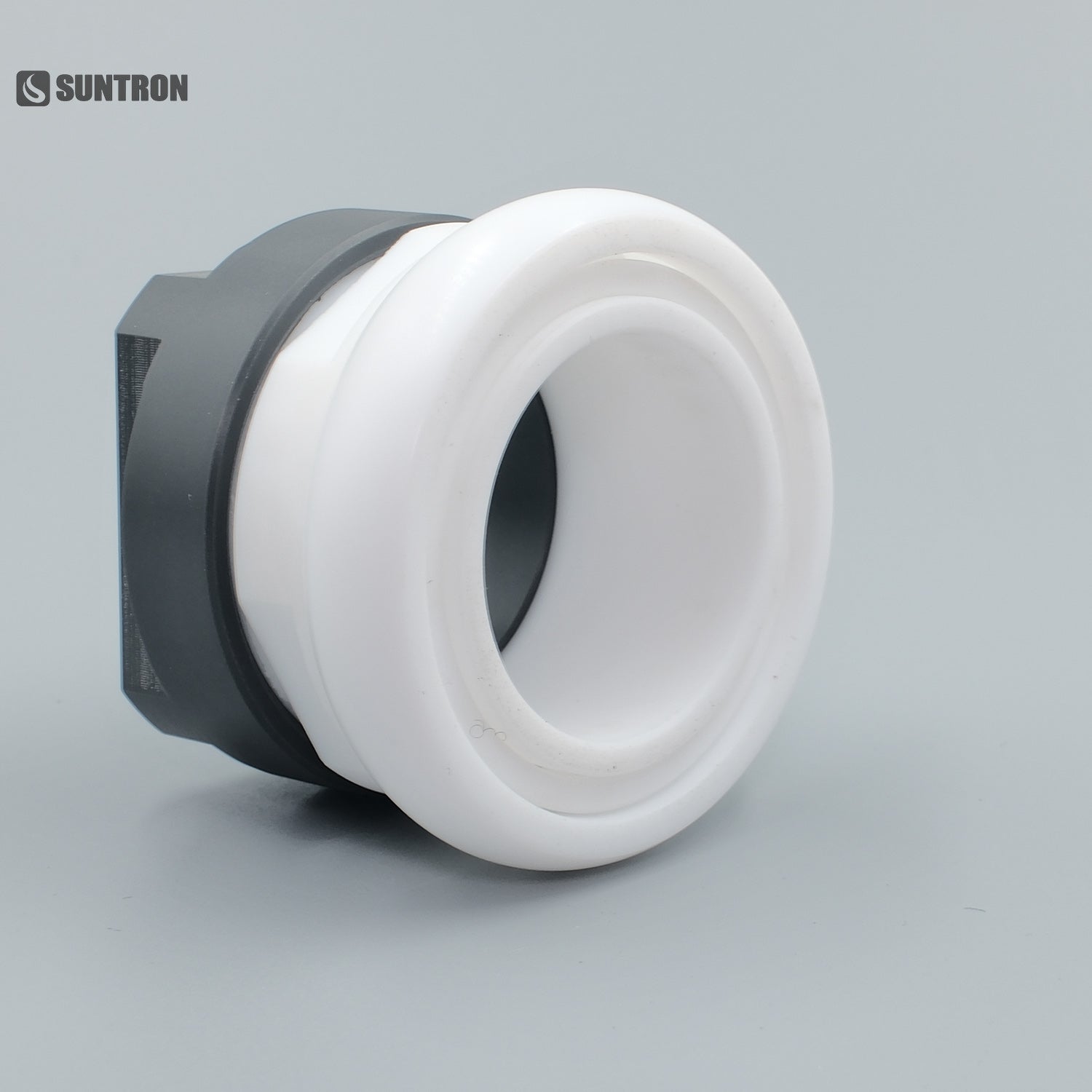

PTFE Precision Guide Roller with Ceramic Balls

Suntron PTFE Precision Guide Roller is developed for high-purity and corrosion-resistant motion systems where traditional metal rollers may not perform well.

The roller combines a precision CNC machined PTFE rolling surface with zirconia ceramic balls, providing excellent chemical resistance, low friction operation and reduced particle generation.

Its detachable structure allows easier installation and maintenance, making it suitable for LCD glass cleaning equipment, wet process systems, semiconductor-related equipment and other precision automation applications.

---

Key Features

Chemical Resistant PTFE Structure

PTFE provides excellent resistance against acids, alkalis and chemical solvents, making it suitable for wet environments.

Zirconia Ceramic Ball Performance

Zirconia ceramic balls offer high hardness, corrosion resistance and stable rolling performance.

Low Friction & Smooth Movement

Precision machined surfaces ensure smooth operation with reduced wear and noise.

Clean Process Compatible

Low particle generation helps meet the requirements of high-purity manufacturing environments.

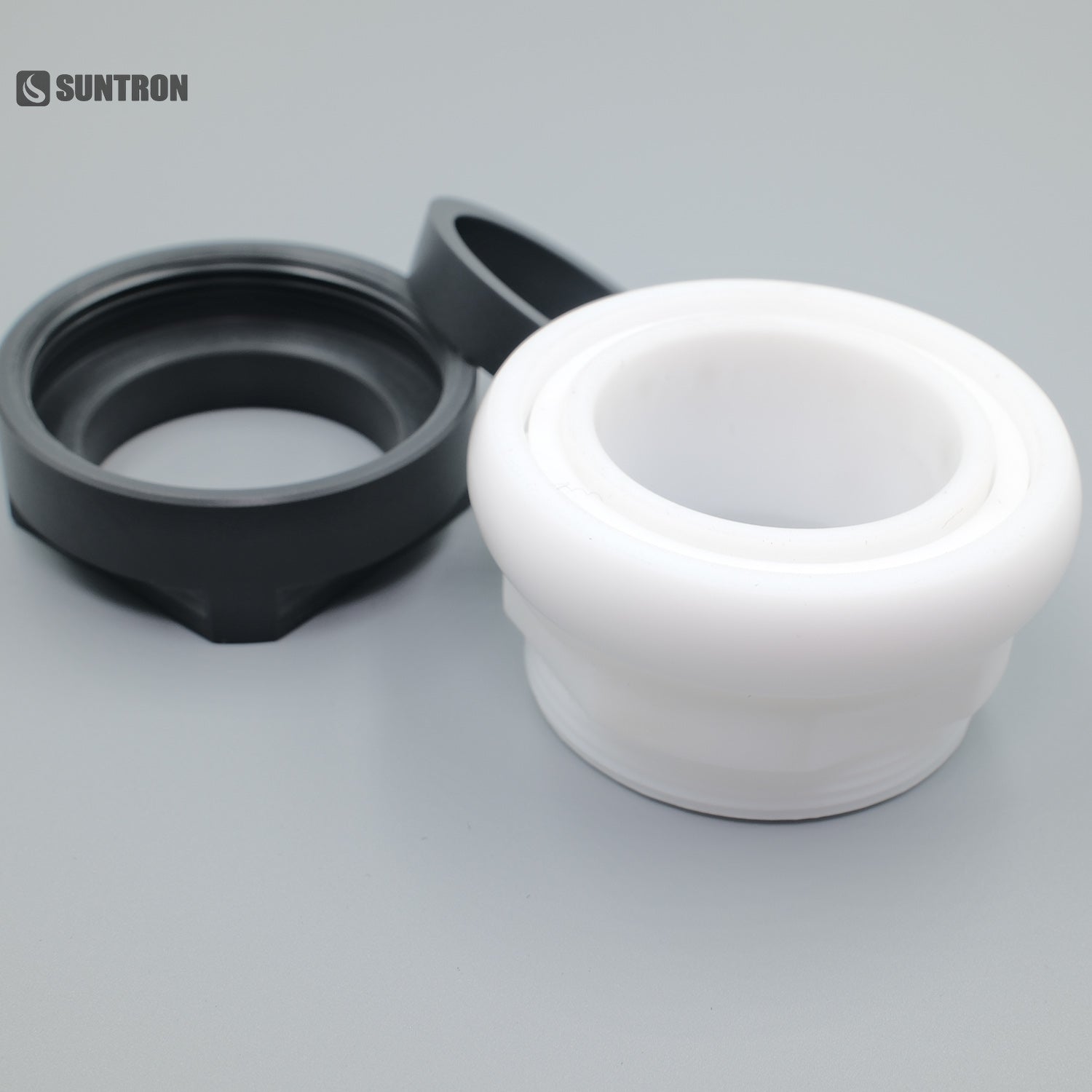

Detachable Design

Modular structure allows convenient assembly, inspection and replacement.

Custom CNC Machining

Customized dimensions and structures are available based on drawings or samples.

---

Applications

LCD & Display Industry

• LCD glass cleaning equipment
• Panel transfer systems
• Display manufacturing lines

Semiconductor & Clean Manufacturing

• Wet process equipment
• Wafer handling systems
• Precision automation equipment

Chemical & Industrial Equipment

• Corrosion-resistant conveyors
• Chemical processing systems
• Special environment machinery

---

Specifications

Item	Description
Product Type	PTFE Precision Guide Roller
Raceway Material	PTFE
Ball Material	Zirconia Ceramic (ZrO₂)
Support Material	PEEK / POM / PVDF / Aluminum Optional
Outer Diameter	Customizable
Inner Diameter	Customizable
Width	Customizable

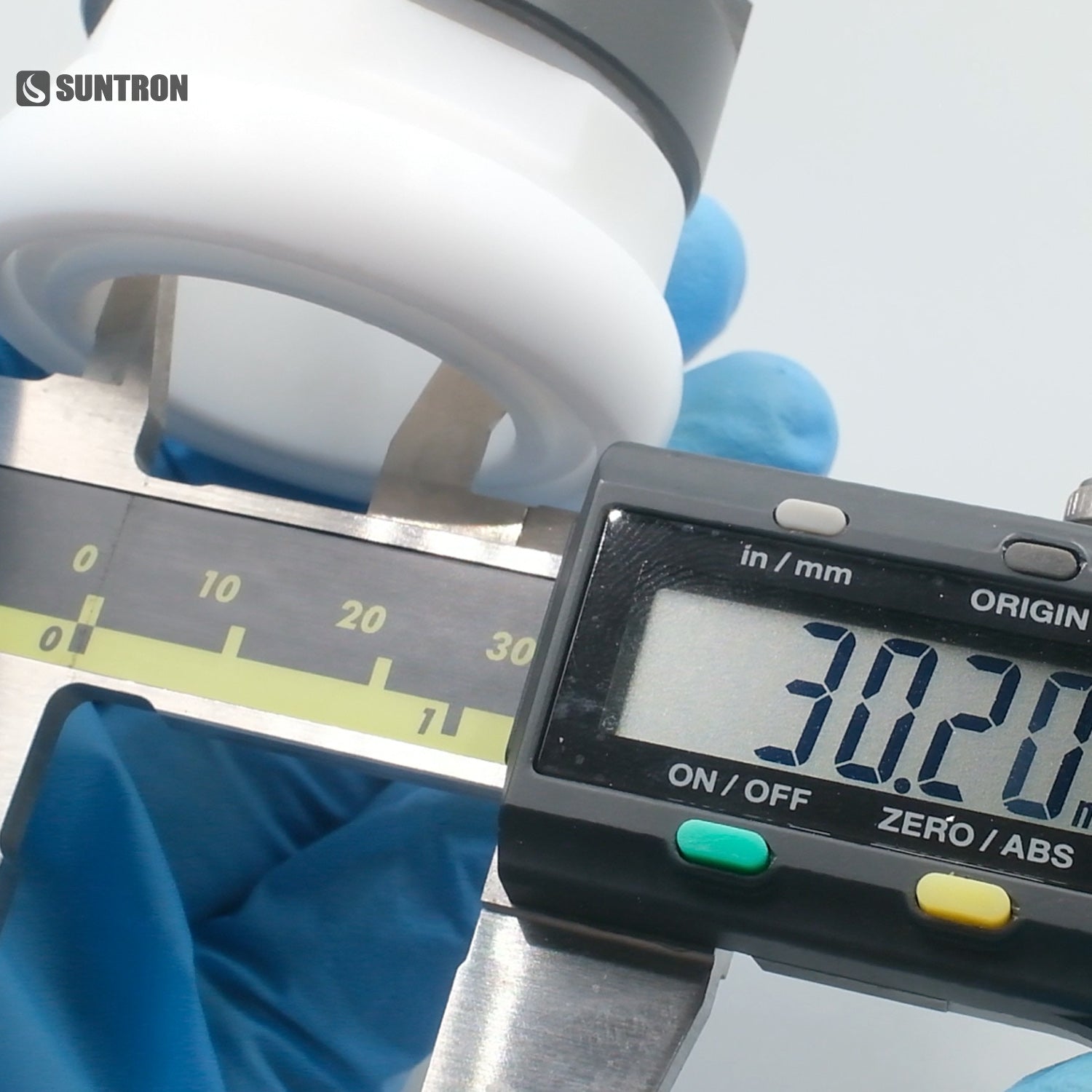

Machining Tolerance	Up to ±0.05 mm
Lubrication	Lubrication-free operation
Customization.

Why Choose Suntron?

• Precision CNC machining capability
• High-performance plastic material expertise
• Customized solutions for industrial equipment
• Experience with PEEK, PTFE, PI and other engineering plastics
• Support from prototype to mass production

---

FAQ

Q1: What is this PTFE guide roller used for?
A: It is mainly used in LCD cleaning equipment, wet process systems, precision transfer systems and chemical-resistant applications.

Q2: Why use PTFE instead of metal rollers?
A: PTFE provides better chemical resistance, lower friction and avoids metal contamination in sensitive environments.

Q3: Are zirconia ceramic balls better than steel balls?
A: Yes. Zirconia ceramic balls offer excellent corrosion resistance, high hardness and stable performance in harsh environments.

Q4: Can you customize the roller size?
A: Yes. Diameter, width, structure and materials can be customized according to drawings or samples.

Q5: Is this roller suitable for cleanroom applications?
A: Yes. PTFE and ceramic materials generate low particles and are suitable for clean processes.

Q6: Does the roller require lubrication?
A: The PTFE and ceramic ball design allows lubrication-free operation in many applications.

Q7: What tolerance can you achieve?
A: Precision CNC machining can achieve tolerances up to ±0.01 mm depending on product design.

Q8: Can I order samples before production?
A: Yes. Samples are available for testing and application verification.
